1
Engine displacement
300
2
Year
1998
3
Trim
XPLORER 300 - W98CC28C
4
Parts Catalog
AIR BOX XPLORER 300 W98CC28C (4945264526B002)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING XPLORER 300 W98CC28C (4945264526A011)
by
FRONT DRIVE XPLORER 300 W98CC28C (4945264526B003)
AIR BOX XPLORER 300 W98CC28C (4945264526B002)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
AIR FILTER FOAM
5810444
9999999
Not Available
2
SEAL FOAM
5810441
9999999
Not Available
3
BOX AIR SILENCER
5432245
Not Available
4
BOOT AIR SILENCER
5410506
9999999
Not Available
5
AIR FILTER
7080369
$49,13 Unit Price incl. VAT
6
BOLT
7512246
9999999
Not Available
7
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
8
SPEED NUT
7670060
9999999
Not Available
9
AIR INTAKE BOX
5431124
9999999
Not Available
10
VALVE UMBRELLA
5410549
9999999
Not Available
11
BUSHING
5410529
9999999
Not Available
12
BOLT-CARRIAGE
7512275
9999999
Not Available
13
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
14
BOOT CARB 30MM
5411159
9999999
Not Available
15
CLAMP
7080140
9999999
Not Available
16
TAPE FOIL
5810310
9999999
Not Available
17
PALNUT
7670080
9999999
Not Available
18
SEAL COVER AIR
5410510
9999999
Not Available
19
COVER AIR INTAKE
5430884
9999999
Not Available
20
RETAINERCOVER
5220980
9999999
Not Available
21
WING NUT
7542127
$2,09 Unit Price incl. VAT

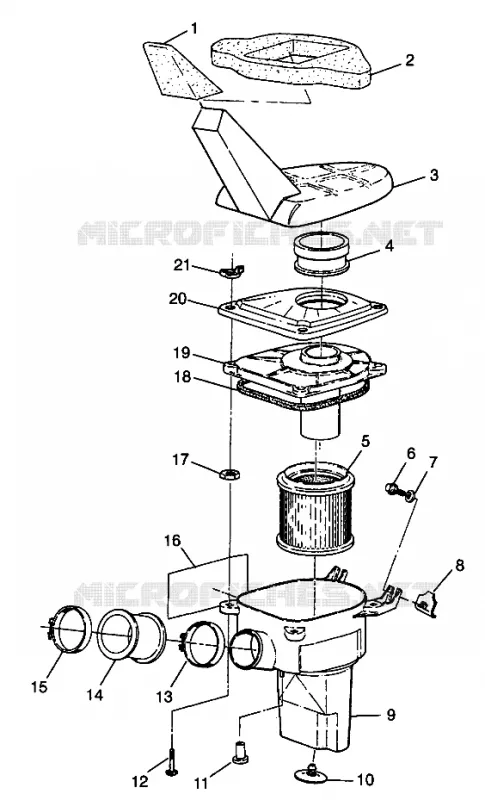

Find the detailed AIR BOX XPLORER 300 W98CC28C (4945264526B002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
