COOLING SYSTEM XPLORER 300 W98CC28C (4945264526A012)
5
Parts Diagram
Parts Catalog
CABIN XPLORER 300 W98CC28C (4945264526A007)
by
EXHAUST SYSTEM XPLORER 300 W98CC28C (4945264526A013)
COOLING SYSTEM XPLORER 300 W98CC28C (4945264526A012)
1
2
3
4
5
6
7
8
9
1
CLAMP-FAN BLADE [No Longer Available]
7080680
Not Available
2
BLADE FAN
5432619
9999999
Not Available
3
NUT (10)
7547004
$9,44 Unit Price incl. VAT
4
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
5
MOUNT FAN 300 BLK
1040568067
Not Available
6
SCREW
7511875
$9,44 Unit Price incl. VAT
7
MOTORFANAIR COOLD SHAFT
4170014
9999999
Not Available
8
BOLT
7512113
$7,34 Unit Price incl. VAT
9
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT

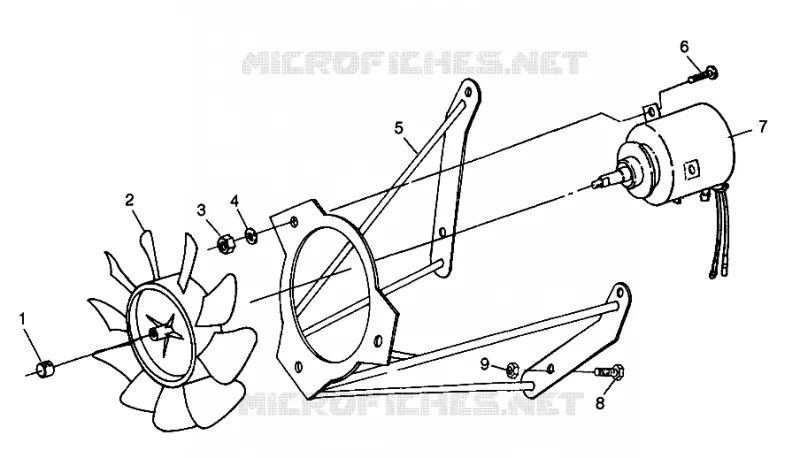

Find the detailed COOLING SYSTEM XPLORER 300 W98CC28C (4945264526A012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
