Parts Catalog
TUNNEL ASSEMBLY 500 XLT (4921662166001A)
5
Parts Diagram
Parts Catalog
by
SEAT/GAS TANK ASSEMBLY 500 XLT (4921662166003A)
TUNNEL ASSEMBLY 500 XLT (4921662166001A)
1
2
3
4
5
6
6
7
7
7
7
7
8
8
8
8
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27
27
28
29
30
31
31
31
31
32
33
34
35
35
1
BOLT
7512240
9999999
Not Available
2
BRKT; TOOL BOX
5220973
9999999
Not Available
3
RIVET(10)
7621222
9999999
Not Available
4
BOLT
7512103
$6,29 Unit Price incl. VAT
5
TUNNEL ASM (50 HP) [No Longer Available]
1011843
Not Available
6
RIVET SEMI-TUBE (10)
7661812
9999999
Not Available
7
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
8
DECAL LH TUNNEL#500SKS# [No Longer Available]
7073183
Not Available
8
DECAL RH TUNNEL#500SKS# [No Longer Available]
7073184
Not Available
9
RIVET
7661625
7661638
$2,09 Unit Price incl. VAT
10
BUMPER; REAR
5224334
9999999
Not Available
11
DECAL TRACK SEAT(BLK.) [No Longer Available]
7073038
Not Available
12
FOOTREST ASM LH
2200250
Not Available
12
FOOTREST ASM RH
2200254
Not Available
13
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
14
DESC NOT_AVAILABLE
7621415
Not Available
15
CAP BUMPER
5430930
9999999
Not Available
16
DECAL (24##)R.BUMP#500/SKS# [No Longer Available]
7073236
Not Available
17
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
18
SCREW
7511863
9999999
Not Available
19
BRKT R.FUEL TANK BLK.
5222375067
Not Available
20
BULKHEAD (500 HD)
1011846067
Not Available
21
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
22
SNAP-MALE
7080227
9999999
Not Available
23
RIVET(10)
7621301
9999999
Not Available
24
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
25
BRKT GASTANK WELD.
1011733067
Not Available
26
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
27
PLATE;TUNNEL;RH
5220635
9999999
Not Available
27
PLATE;TUNNEL;LH
5220634
9999999
Not Available
28
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
29
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
30
BRKT F.SUSP. BLK.
5211323067
Not Available
31
BRACKET SUSPENSION REAR LH BLACK
1011749067
Not Available
31
BRACKET SUSPENSION REAR RH BLACK
1011750067
Not Available
32
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
33
BRACE TUNNEL REINF.
5222412
Not Available
34
SUPPORTMUFFLERBLK.
1011831067
Not Available
35
RIVET
7661828
9999999
Not Available

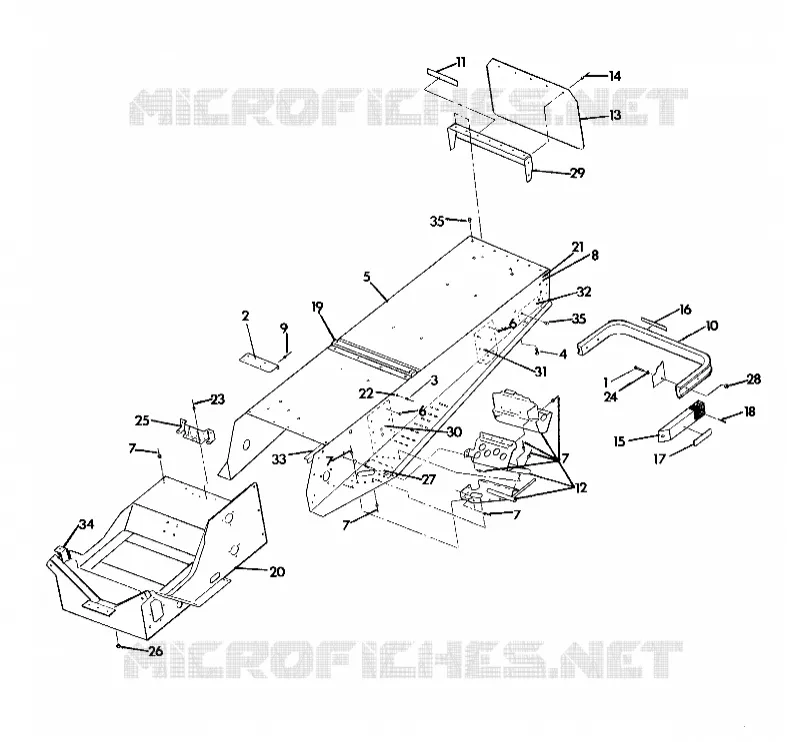

Find the detailed TUNNEL ASSEMBLY 500 XLT (4921662166001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
