1
Engine displacement
autre
2
Year
1994
3
Trim
CLASSIC - 0942865
4
Parts Catalog

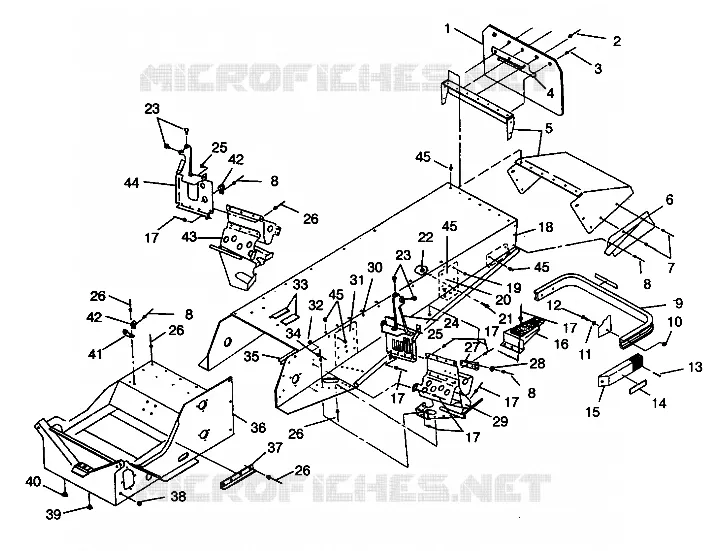

TUNNEL ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496001A)
5
Parts Diagram
Parts Catalog
by
IGNITION WIRE HARNESS CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496003A)
TUNNEL ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496001A)
1
2
3
4
5
5
5
5
6
6
6
6
7
8
8
8
8
9
9
9
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
17
17
17
17
17
18
18
18
18
19
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
21
22
23
23
24
25
25
26
26
26
26
26
27
28
29
30
31
32
33
34
35
36
36
36
36
37
38
39
40
41
42
42
43
44
45
45
45
45
1
2
3
4
5
5
5
5
6
6
6
6
7
8
8
8
8
9
9
9
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
17
17
17
17
17
18
18
18
18
19
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
21
22
23
23
24
25
25
26
26
26
26
26
27
28
29
30
31
32
33
34
35
36
36
36
36
37
38
39
40
41
42
42
43
44
45
45
45
45
1
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
2
RIVET(10) STEEL
7661641
9999999
Not Available
3
RIVET
7621418
$2,09 Unit Price incl. VAT
4
RETAINER FLAP
5222659067
Not Available
5
CLOSE-OFF ASM REAR BLK. Substituted by 1012232-067 (SKS)
1011694067
Not Available
5
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
6
SKIRT RH SNOW BLK.
5431645
9999999
Not Available
6
SKIRT LH SNOW BLK.
5431627
9999999
Not Available
7
RIVET
7621472
$2,09 Unit Price incl. VAT
8
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
9
BUMPER ASM REAR (Touring)
2670122
Not Available
9
BUMPERREARBLK.
5224334067
Not Available
10
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
11
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
12
BOLT
7512240
9999999
Not Available
13
SCREW
7511863
9999999
Not Available
14
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
15
CAP BUMPER BLK.
5430930070
Not Available
16
PAD LH FOOT SAFETY
5830007
9999999
Not Available
16
PAD RH FOOT SAFETY
5830008
9999999
Not Available
16
FOOTREST RH REAR
5220894
9999999
Not Available
16
FOOTREST LH REAR
5220893
9999999
Not Available
17
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
18
TUNNEL ASMBLK(94CLASSIC)
1011933
9999999
Not Available
18
TUNNEL 2-UP BLK SKS (SKS)
1011957
Not Available
19
RIVET (10)
7661825
9999999
Not Available
20
BRKT RH.REAR SUSP.
1011906067
Not Available
20
BRKT RH R.SUSP.
1011858067
Not Available
20
BRKT LH R.SUSP
1011857067
Not Available
20
BRKT LH.REAR SUSP
1011905067
Not Available
21
BOLT
7515482
9999999
Not Available
22
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
23
BUMPER HOOD
5410768
9999999
Not Available
24
MT CONSOLE LH
1011951067
Not Available
25
SCREW
7512057
9999999
Not Available
26
RIVET
7661637
$2,09 Unit Price incl. VAT
27
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
28
STOP BUMPER
5410826
Not Available
29
FOOTREST ASM LH BLK. Substituted by 1012544
1011934
Not Available
30
NUT SERT
7541938
9999999
Not Available
31
BRKT F.SUSP. BLK.
5211323067
Not Available
32
SNAP-MALE
7080227
9999999
Not Available
33
DECAL TOP TUNNEL STRIP
7073978
Not Available
34
RIVET(10)
7621222
9999999
Not Available
35
BRACE REINF.TUNNEL
5240242
Not Available
36
BULKHEAD (440SKS)
1011923
9999999
Not Available
36
BULKHEAD; EFI
1011948067
Not Available
37
GUARD ADAPTER GUIDE
5222857
9999999
Not Available
38
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
39
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
40
BUSHING OPEN/CLOSE
7080399
9999999
Not Available
41
ROPE GUIDE BRACKET; MEDIUM GLOSS BLACK
5222687067
Not Available
42
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
43
FOOTREST ASM RH BLK. Substituted by 1012545
1011935
Not Available
44
MT CONSOLE RH
1011952067
Not Available
45
RIVET (50)
7661829
9999999
Not Available

Find the detailed TUNNEL ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for CLASSIC - 0942865

TUNNEL ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496001A)

TUNNEL ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496001A)

for CLASSIC - 0942865 from 1994

IGNITION WIRE HARNESS CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496003A)

IGNITION WIRE HARNESS CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496003A)

for CLASSIC - 0942865 from 1994

SEAT GAS TANK ASSEMBLY CLASSIC 0942865 (4924962496004A)

SEAT GAS TANK ASSEMBLY CLASSIC 0942865 (4924962496004A)

for CLASSIC - 0942865 from 1994

HOOD

HOOD

for CLASSIC - 0942865 from 1994

BATTERY BOX CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496012A)

BATTERY BOX CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496012A)

for CLASSIC - 0942865 from 1994

FRONT SUSPENSION AND SKI CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496013A)

FRONT SUSPENSION AND SKI CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496013A)

for CLASSIC - 0942865 from 1994

STEERING

STEERING

for CLASSIC - 0942865 from 1994

CHAINCASE ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496020A)

CHAINCASE ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496020A)

for CLASSIC - 0942865 from 1994

DRIVE TRAIN ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496021A)

DRIVE TRAIN ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496021A)

for CLASSIC - 0942865 from 1994

TOOL KIT CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496022A)

TOOL KIT CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496022A)

for CLASSIC - 0942865 from 1994

SUSPENSION ASSEMBLY CLASSIC 0942865 (4924962496023A)

SUSPENSION ASSEMBLY CLASSIC 0942865 (4924962496023A)

for CLASSIC - 0942865 from 1994

DRIVEN CLUTCH CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496030A)

DRIVEN CLUTCH CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496030A)

for CLASSIC - 0942865 from 1994

ENGINE MOUNTING CLASSIC 0942865 (4924962496031A)

ENGINE MOUNTING CLASSIC 0942865 (4924962496031A)

for CLASSIC - 0942865 from 1994

ENGINE MOUNTING CLASSIC TOURING 0942875 (4924962496032A)

ENGINE MOUNTING CLASSIC TOURING 0942875 (4924962496032A)

for CLASSIC - 0942865 from 1994

EXHAUST SYSTEM CLASSIC 0942865 (4924962496033A)

EXHAUST SYSTEM CLASSIC 0942865 (4924962496033A)

for CLASSIC - 0942865 from 1994

EXHAUST SYSTEM CLASSIC TOURING 0942875 (4924962496034A)

EXHAUST SYSTEM CLASSIC TOURING 0942875 (4924962496034A)

for CLASSIC - 0942865 from 1994

CRANKCASE ASSEMBLY CLASSIC TOURING 0942875 (4924962496039A)

CRANKCASE ASSEMBLY CLASSIC TOURING 0942875 (4924962496039A)

for CLASSIC - 0942865 from 1994

CYLINDER CLASSIC 0942865 (4924962496040A)

CYLINDER CLASSIC 0942865 (4924962496040A)

for CLASSIC - 0942865 from 1994

CYLINDER CLASSIC TOURING 0942875 (4924962496041A)

CYLINDER CLASSIC TOURING 0942875 (4924962496041A)

for CLASSIC - 0942865 from 1994

WATER PUMP CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496042A)

WATER PUMP CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496042A)

for CLASSIC - 0942865 from 1994

OIL PUMP ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496047A)

OIL PUMP ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496047A)

for CLASSIC - 0942865 from 1994

MAGNETO ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496048A)

MAGNETO ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496048A)

for CLASSIC - 0942865 from 1994

RECOIL STARTER ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496049A)

RECOIL STARTER ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496049A)

for CLASSIC - 0942865 from 1994

EFI PARTS CLASSIC TOURING 0942875 (4924962496050A)

EFI PARTS CLASSIC TOURING 0942875 (4924962496050A)

for CLASSIC - 0942865 from 1994

SEAT GAS TANK ASSEMBLY CLASSIC TOURING 0942875 (4924962496005A)

SEAT GAS TANK ASSEMBLY CLASSIC TOURING 0942875 (4924962496005A)

for CLASSIC - 0942865 from 1994

NOSEPAN ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496007A)

NOSEPAN ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496007A)

for CLASSIC - 0942865 from 1994

NOSEPAN ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496008A)

NOSEPAN ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496008A)

for CLASSIC - 0942865 from 1994

HOOD ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496009A)

HOOD ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496009A)

for CLASSIC - 0942865 from 1994

HOOD/HEADLIGHT ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496010A)

HOOD/HEADLIGHT ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496010A)

for CLASSIC - 0942865 from 1994

STEERING ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496016A)

STEERING ASSEMBLY CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496016A)

for CLASSIC - 0942865 from 1994

CONTROLS CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496017A)

CONTROLS CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496017A)

for CLASSIC - 0942865 from 1994

BRAKE CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496018A)

BRAKE CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496018A)

for CLASSIC - 0942865 from 1994

COOLING SYSTEM CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496019A)

COOLING SYSTEM CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496019A)

for CLASSIC - 0942865 from 1994

SUSPENSION ASSEMBLY CLASSIC TOURING 0942875 (4924962496025A)

SUSPENSION ASSEMBLY CLASSIC TOURING 0942875 (4924962496025A)

for CLASSIC - 0942865 from 1994

FRONT TORQUE ARM CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496027A)

FRONT TORQUE ARM CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496027A)

for CLASSIC - 0942865 from 1994

REAR TORQUE ARM CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496028A)

REAR TORQUE ARM CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496028A)

for CLASSIC - 0942865 from 1994

DRIVE CLUTCH CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496029A)

DRIVE CLUTCH CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496029A)

for CLASSIC - 0942865 from 1994

OIL TANK/AIR BOX CLASSIC 0942865 (4924962496035A)

OIL TANK/AIR BOX CLASSIC 0942865 (4924962496035A)

for CLASSIC - 0942865 from 1994

OIL TANK/AIR BOX CLASSIC TOURING 0942875 (4924962496036A)

OIL TANK/AIR BOX CLASSIC TOURING 0942875 (4924962496036A)

for CLASSIC - 0942865 from 1994

PISTON CRANKSHAFT CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496037A)

PISTON CRANKSHAFT CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496037A)

for CLASSIC - 0942865 from 1994

CRANKCASE ASSEMBLY CLASSIC 0942865 (4924962496038A)

CRANKCASE ASSEMBLY CLASSIC 0942865 (4924962496038A)

for CLASSIC - 0942865 from 1994

THROTTLE BODYWORK CLASSIC TOURING 0942875 (4924962496043A)

THROTTLE BODYWORK CLASSIC TOURING 0942875 (4924962496043A)

for CLASSIC - 0942865 from 1994

CARBURETOR CLASSIC 0942865 (4924962496044A)

CARBURETOR CLASSIC 0942865 (4924962496044A)

for CLASSIC - 0942865 from 1994

FUEL PUMP CLASSIC 0942865 (4924962496045A)

FUEL PUMP CLASSIC 0942865 (4924962496045A)

for CLASSIC - 0942865 from 1994

FUEL PUMP CLASSIC TOURING 0942875 (4924962496046A)

FUEL PUMP CLASSIC TOURING 0942875 (4924962496046A)

for CLASSIC - 0942865 from 1994

STARTING MOTOR CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496051A)

STARTING MOTOR CLASSIC 0942865 AND CLASSIC TOURING 0942875 (4924962496051A)

for CLASSIC - 0942865 from 1994

POLARIS CLASSIC - 0942865 1994

CLASSIC - 0942865

CLASSIC - 0942865

Model : OTHERS

Engine capacity : autre

Year : 1994

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
