1
Engine displacement
autre
2
Year
1994
3
Trim
CLASSIC - 0942865
4
Parts Catalog

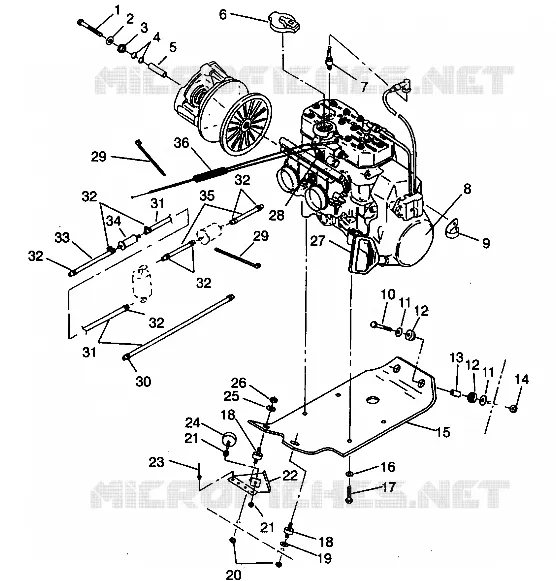

ENGINE MOUNTING CLASSIC TOURING 0942875 (4924962496032A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING CLASSIC 0942865 (4924962496031A)
by
EXHAUST SYSTEM CLASSIC 0942865 (4924962496033A)
ENGINE MOUNTING CLASSIC TOURING 0942875 (4924962496032A)
1
2
3
4
5
6
7
8
8
8
8
9
10
11
11
12
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
26
27
28
29
29
30
31
31
32
32
32
32
32
33
34
35
36
1
2
3
4
5
6
7
8
8
8
8
9
10
11
11
12
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
26
27
28
29
29
30
31
31
32
32
32
32
32
33
34
35
36
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
CAP; PRESSURE
2511217
9999999
Not Available
7
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC50PL-07/08 [No Longer Available]
3084622
Not Available
8
ENG.EC50PL-08 [No Longer Available]
1211538
Not Available
9
CLAMP
7080347
7080573
$13,64 Unit Price incl. VAT
10
SCREW
7512530
$10,49 Unit Price incl. VAT
11
WASHER
7555740
$3,14 Unit Price incl. VAT
12
MOUNT ENGINE
5410390
9999999
Not Available
13
SPACER (MTR.MT.)
5332778
9999999
Not Available
14
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
15
PLATE ENG.MT.
5222867
Not Available
16
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
17
BOLT
7512539
$7,34 Unit Price incl. VAT
18
MOUNT
3110022
9999999
Not Available
19
WASHER
7555721
$2,09 Unit Price incl. VAT
20
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
21
NUT JAM
7542432
$7,34 Unit Price incl. VAT
22
LIMITER TORQUE BLK.
1011930067
Not Available
23
RIVET
7661637
$2,09 Unit Price incl. VAT
24
STOP
3110023
9999999
Not Available
25
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
26
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
27
HANDLE RECOIL
5431499
9999999
Not Available
28
CONDUIT CONVOL(26 CM)
401005126
Not Available
29
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
30
CLAMP HOSE(SCREW TYPE)
7080417
$17,84 Unit Price incl. VAT
31
FUEL LINE; 5 FT.
8450045153
Not Available
32
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
33
FUEL LINE; 600 CM
8450040600
Not Available
34
FUEL FILTER
2530008
9999999
Not Available
35
DESC NOT_AVAILABLE
8450074153
Not Available
36
CABLE;THROTTLE
7080403
9999999
Not Available

Find the detailed ENGINE MOUNTING CLASSIC TOURING 0942875 (4924962496032A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
