1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN TOURING 570 EPS SP TRACTOR
4
Parts Catalog
SWITCHES, SENSORS AND ECM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
TAIL LAMPS
SWITCHES, SENSORS AND ECM
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
1
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
2
IGNITION SWITCH NUT
5433733
9999999
Not Available
3
SEALED BRAKE SWITCH; 10 MM X 1.25 MM
4014262
4081264
$153,29 Unit Price incl. VAT
4
KEY SWITCH KEY COVER
5433534
5465307
$26,24 Unit Price incl. VAT
5
4 POSITION KEY SWITCH; ATV
4012166
4083619
Not Available
5
BLANK KEY; 22/23/27/28
4010321
4083604
$27,29 Unit Price incl. VAT
5
BLANK KEY; 20/21/67/68
4010278
4083605
$27,29 Unit Price incl. VAT
6
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
7
O-RING
3234302
$13,64 Unit Price incl. VAT
8
GEAR POSITION SWITCH PIN
7661999
$220,49 Unit Price incl. VAT
9
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
10
NO START ELECTRIC CONTROL MODULE (ECM)
4014125
$1 123,49 Unit Price incl. VAT
11
MNT-ECM REAR BLK
5438708070
Not Available
12
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
14
REG-3PH 50A SERIES HISPD TCAP
4015230
2208110
$556,49 Unit Price incl. VAT
15
COVER-VOLTAGE REGULATOR
5253294
9999999
Not Available
16
SCREW
7515179
$4,19 Unit Price incl. VAT
17
THEMISTER SENSOR
4010644
$141,74 Unit Price incl. VAT
18
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
19
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
20
CRANK POSITION SENSOR
2411719
$194,24 Unit Price incl. VAT
21
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
22
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
23
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
24
ON/OFF WORKLIGHT SWITCH
4011074
$73,49 Unit Price incl. VAT
25
X-MAS TREE CLIP
7670101
$4,19 Unit Price incl. VAT
25
MODULE-FLASH TURN TRAILER TRC
4017177
$141,74 Unit Price incl. VAT

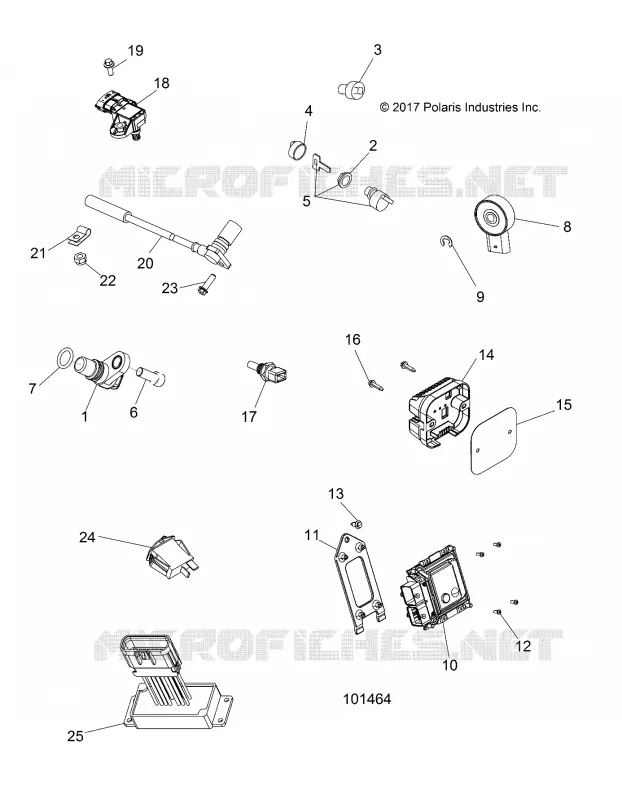

Find the detailed SWITCHES, SENSORS AND ECM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
