POWER STEERING EPS for POLARIS SPORTSMAN TOURING 570 EPS SP TRACTOR from 2019

SUSPENSION, A-ARM AND STRUT MOUNTING

POWER STEERING EPS

1

STEERING POST WELD; UPPER; BLACK

1824678329

Not Available

2

STEERING POST ASSEMBLY; LOWER

1824203

1830310

$220,49 Unit Price incl. VAT

3

POWER STEERING ASSEMBLY ATV

2414461

9999999

Not Available

3

BASE-EPS TAIGENE H-O GEN2

2414462

9999999

Not Available

4

STEERING BUSHING BRACKET; UPPER

5257028

$62,99 Unit Price incl. VAT

5

PLATE-MNT POWER STEERING BLK

5259190329

Not Available

6

STEERING BUSHING; UPPER; 1 IN

5439731

$12,59 Unit Price incl. VAT

7

SCREW

7515398

9999999

Not Available

8

SCREW

7516827

$12,59 Unit Price incl. VAT

9

BOLT

7517428

$4,19 Unit Price incl. VAT

10

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

11

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

12

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

13

TIE ROD ASSEMBLY

1824206

$194,24 Unit Price incl. VAT

14

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

15

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

16

WASHER

7556153

$3,66 Unit Price incl. VAT

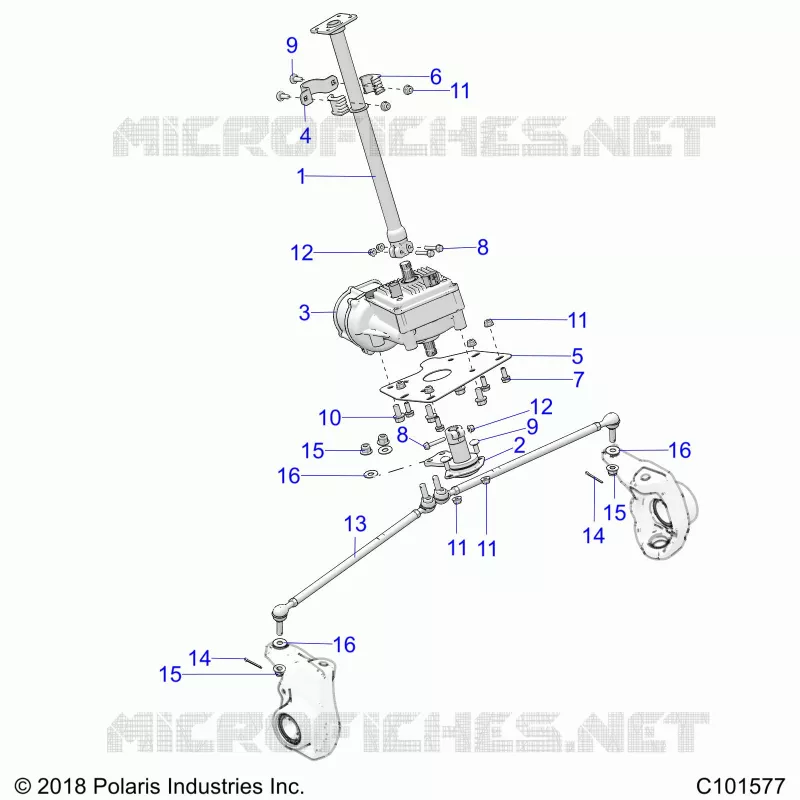

Find the detailed POWER STEERING EPS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
