1
Engine displacement
autre
2
Year
1995
3
Trim
STORM - 0950782
4
Parts Catalog
COOLING SYSTEM STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO (4929012901B009)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B003)
by
SUSPENSION ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, (4929012901B011)
COOLING SYSTEM STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO (4929012901B009)
1
EXCHANGER COOL.REAR
2511254
9999999
Not Available
2
SEAL FOAM
5810947
$8,39 Unit Price incl. VAT
3
CLAMP HOSE GRY 35MM.
7080564
9999999
Not Available
4
HOSE COOLING
5410758
9999999
Not Available
5
RIVET
7661637
$2,09 Unit Price incl. VAT
6
STRAP BLK
7080272
9999999
Not Available
7
HOSE (1 X 10 FT.)
8450048305
Not Available
8
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
9
EXT. LH COOLING Substituted by 2511257
2511228
Not Available
9
EXT. RH.COOLING.
2511229
9999999
Not Available
10
GUARD COOL.EXT.
5222863
9999999
Not Available
11
CLAMP HOSE SIL 27MM.
7080562
7080841
$13,64 Unit Price incl. VAT
12
HOSE-CROSSOVER
5410324
9999999
Not Available
13
HOSE-CROSSOVER
5410350
9999999
Not Available
14
EXCHANGER CTR.COOLING
2511260
Not Available
15
BRKT SURGE TANK
5240630
Not Available
16
MANIFOLD 4-WAY CAST
5630490
9999999
Not Available
17
HOSE;4-WAY;CLOSE OFF
5410967
9999999
Not Available
18
HOSE
5521291
9999999
Not Available
19
EDGE TRIM; 6 FT; BLACK
5521131
9999999
Not Available
20
HOSE ENG/AUTOSTAT
5410764
Not Available
21
HOSEWATER305 CM.
8450050305
Not Available
22
CONNECTOR TEE 3/4
7052093
$15,74 Unit Price incl. VAT
23
CLAMP-HOSE
7080134
9999999
Not Available
24
HOUSING THERMOSTAT
5130943
Not Available
25
AUTOSTAT
7051007
9999999
Not Available
26
GASKET THERMOSTAT
5830020
9999999
Not Available
27
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
28
BOLT
7512383
9999999
Not Available
29
PLUG; AIR VENT
3083350
9999999
Not Available
30
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
31
CAP THERMOSTAT HSG MACH.
5130942
9999999
Not Available
32
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
33
FILTER WATER LINE
2530010
9999999
Not Available
34
FUEL LINE; 1/4 ID
84500031525
Not Available
35
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
36
FITTING
7052099
$9,44 Unit Price incl. VAT
37
HOSE R.COOLER 3-WAY
5410845
9999999
Not Available
38
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
39
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
40
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
41
CAP SURGETANK
5431433
Not Available
42
FITTING 90 DEG 10/32
7052098
Not Available
43
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
44
FITTING;VENT
5431692
9999999
Not Available
45
BOLT
7512240
9999999
Not Available
46
HOSE 3-WAY R.COOLER
5410962
9999999
Not Available
47
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
48
TANK SURGE COOLANT
5431684
Not Available
49
GROMMET RUBBER
5410021
9999999
Not Available

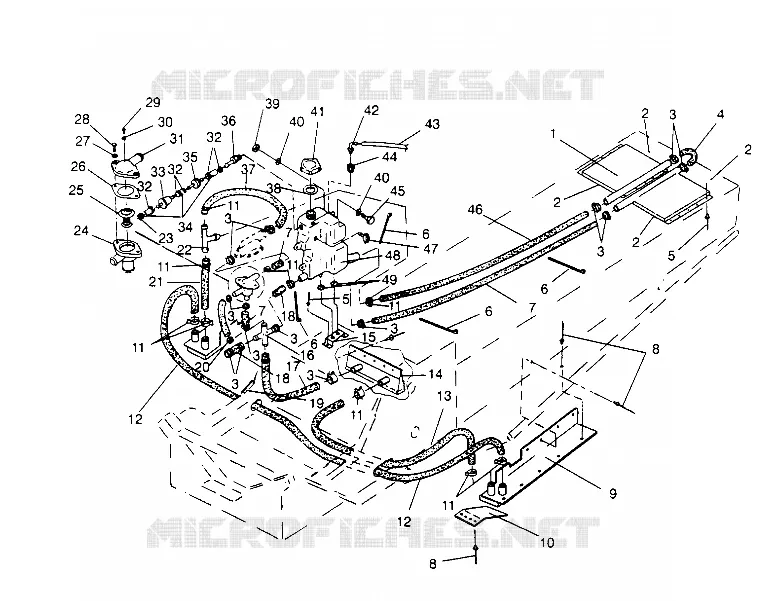

Find the detailed COOLING SYSTEM STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO (4929012901B009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
