WATER PUMP STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STOR (4929012901C012) for POLARIS STORM - 0950782 from 1995

PISTON CRANKSHAFT STORM 0950782, STORM SKS 0950582, EURO STORM E950782 (4929012901C013)

SCREW&WASHER ASM.(10)

3084221

9999999

Not Available

CASING 2 PUMP

3084666

Not Available

WASHER

3082505

9999999

Not Available

BOLT&WASHER ASM.

3083370

9999999

Not Available

GASKET WATER PUMP

3084551

Not Available

PUMP WATER (Incl. 1 2 5-8)

3084659

Not Available

WASHER

3084366

Not Available

BOLT&WASHER ASM.(10)

3084552

9999999

Not Available

PULLEY DRIVE

3084554

Not Available

BELT WATER PUMP

3084555

9999999

Not Available

BOLT&WASHER ASM.

3083862

9999999

Not Available

COVER WATER PUMP

3083403

Not Available

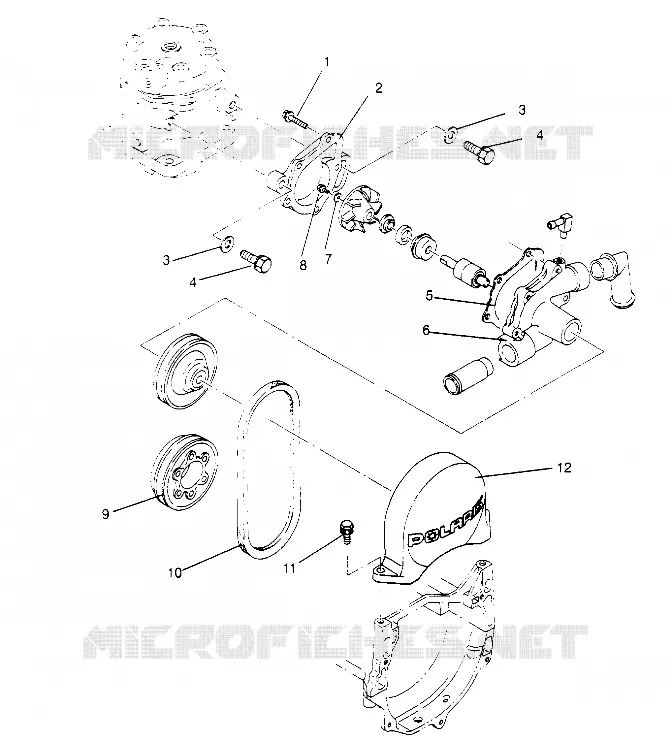

Find the detailed WATER PUMP STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STOR (4929012901C012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
