OIL TANK AIR BOX STORM 0950782, STORM SKS 0950582, EURO STORM E (4929012901C007)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO (4929012901C006)
by
TOOL KIT STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STORM (4929012901C008)
OIL TANK AIR BOX STORM 0950782, STORM SKS 0950582, EURO STORM E (4929012901C007)
1
OIL LEVER SENSOR
4110134
$141,74 Unit Price incl. VAT
2
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
3
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
4
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
5
BOLT
7512276
$9,44 Unit Price incl. VAT
6
TANK;OIL;W/SEND.UNIT HOLE
5431687
2200874
Not Available
7
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
8
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
9
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
10
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
11
LINE OIL FORMED
5410902
Not Available
12
FITTING 3/8 OUTLET
7052110
9999999
Not Available
13
BRKT;OIL TANK
5240330
9999999
Not Available
14
GROMMET RUBBER
5410021
9999999
Not Available
15
RIVET
7661637
$2,09 Unit Price incl. VAT
16
SCREW
7512279
$1,56 Unit Price incl. VAT
17
WASHER
7552604
$3,14 Unit Price incl. VAT
18
WELL NUT
7541923
$10,49 Unit Price incl. VAT
19
DECAL LOW OIL LEVEL
7074664
Not Available
20
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
21
INTAKE ASMFOAMW/MESH
1253131
9999999
Not Available
22
PLENUM INLET
5410834
9999999
Not Available
23
PLENUM AIR BOX
5431922
9999999
Not Available
24
SEAL PLENUM
5810946
Not Available
25
BOX AIR MAG.
5431919
9999999
Not Available
26
FITTING TEE
7052048
$7,34 Unit Price incl. VAT
27
CLAMP CABLE
7080535
9999999
Not Available
28
BOX AIR CTR.
5431920
9999999
Not Available
29
NUT-WELL
7541918
9999999
Not Available
30
WASHER; LOCK
7571603
9999999
Not Available
31
SCREW
7511954
9999999
Not Available
32
DECAL CAUTION(AIR BOX) [No Longer Available]
7072891
Not Available
33
Decal Adjustable Driven Clutch
7073820
Not Available
34
DECAL; GREASING
7073426
9999999
Not Available
35
BOX AIR PTO.
5431921
Not Available
36
BRKT;AIR BOX
5240354
9999999
Not Available
37
BOOT
5410271
9999999
Not Available

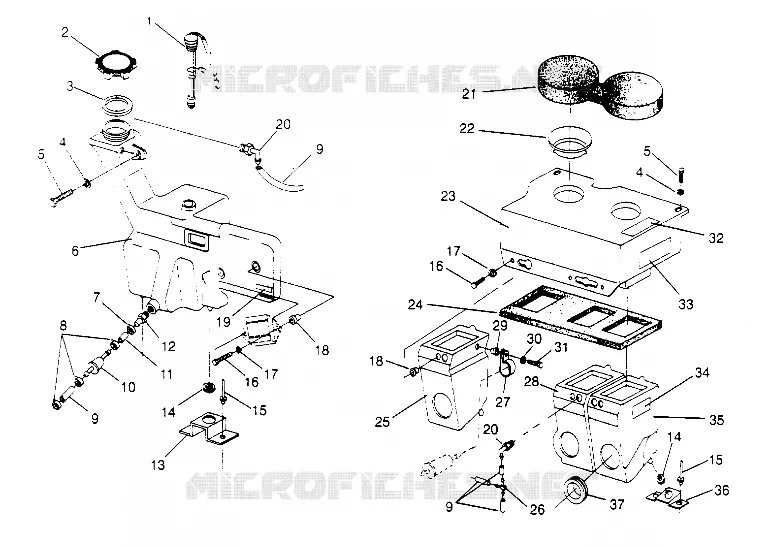

Find the detailed OIL TANK AIR BOX STORM 0950782, STORM SKS 0950582, EURO STORM E (4929012901C007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
