Engine displacement
500
2
Year
2002
3
Trim
500 SKS
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
WATER PUMP/OIL PUMP
CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
SCREW 8 MM X 1.25 MM X 60 MM
7517534
9999999
Not Available
2
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
3
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
4
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
5
SENSOR TEMP 93 DEG.C.
4110254
9999999
Not Available
6
COVER-THERMOSTAT M6 BLEED LG
5630992
9999999
Not Available
7
O-RING LIP SEAL
5411521
9999999
Not Available
8
COVER-HEAD 70.5 500 BLK E-COAT
5631198329
Not Available
9
O-RING
5411411
$1,56 Unit Price incl. VAT
10
SEAL
5411465
$57,74 Unit Price incl. VAT
11
HEAD-CYLINDER 70.5 TWN SNO 3/4
3021048
9999999
Not Available
12
O-RING
5411199
9999999
Not Available
13
O-RING
5411359
$23,09 Unit Price incl. VAT
14
NUT
7547013
$3,14 Unit Price incl. VAT
15
CYLINDER 70.5MM SNO IRON
3021135
9999999
Not Available
16
GASKET-CYLINDER BASE
5811916
9999999
Not Available
17
FITTING-3/4NPT-1 IN HOSE BRASS
7052234
9999999
Not Available
18
THERMOSTAT
7052267
9999999
Not Available
19
SCREW
7516818
$10,49 Unit Price incl. VAT

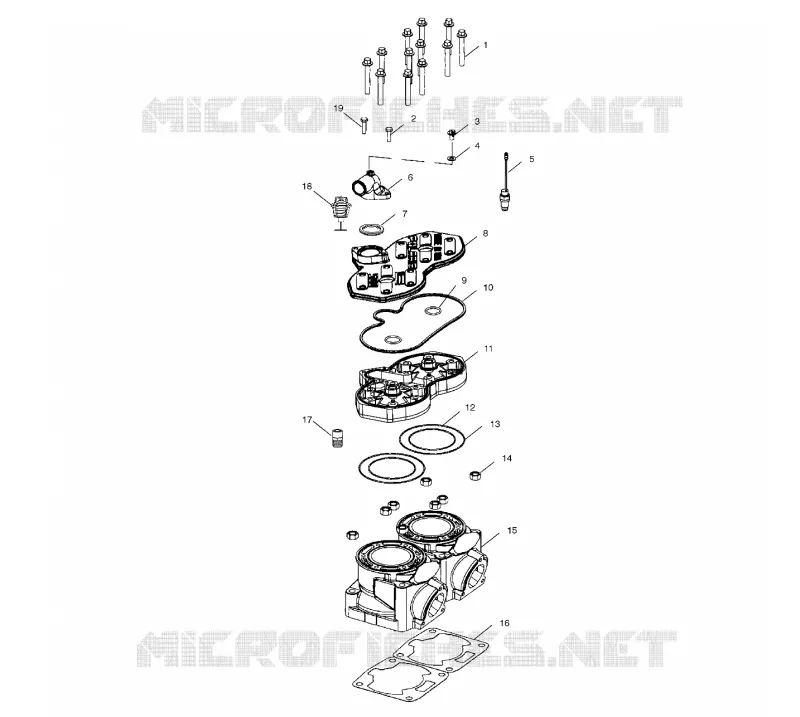

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
