1
Engine displacement
500
2
Year
2002
3
Trim
500 SKS
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
SKI
by
BRAKE
STEERING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
7
7
8
8
9
10
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
32
33
34
34
35
36
36
37
37
38
39
1
NUT;FLEX LOCK
7547029
9999999
Not Available
2
WASHER
7555721
$2,09 Unit Price incl. VAT
3
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
4
BALL BEARING
3514320
$27,29 Unit Price incl. VAT
5
NUT LOCK
7542403
9999999
Not Available
6
ARM ASMPITMAN
1820573
9999999
Not Available
7
HI-ANGLE ROD END; RIGHT; 3/8
7060174
$99,74 Unit Price incl. VAT
8
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
9
ROD DRAG LINK
5333408
9999999
Not Available
10
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
11
NUT FLEX-LOC
7542303
9999999
Not Available
12
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
13
BOLT
7512404
$7,34 Unit Price incl. VAT
14
BRKT BOLT RETAINER
5241997
9999999
Not Available
15
RIVET
7661637
$2,09 Unit Price incl. VAT
16
CABLE TIE-RELEASABLE;5 1/2
7080804
$6,29 Unit Price incl. VAT
17
STEERING HOOPBLK
1013153067
Not Available
18
BOLT-CARRIAGE
7512275
9999999
Not Available
19
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
20
RIVET-3/16-.214-.420 (50)
7661130
$2,09 Unit Price incl. VAT
21
TORQUE STOP SN44
1012854
Not Available
22
NUT
7542404
$3,14 Unit Price incl. VAT
23
STOP TORQUE COURSE
3110078
9999999
Not Available
24
BOLT
7517428
$4,19 Unit Price incl. VAT
25
BOOT TIEROD MOD
5411249
9999999
Not Available
26
PLATE BOOT MOD
5211796067
Not Available
27
POP RIVET
7621323
$2,09 Unit Price incl. VAT
28
PLUG HOLE
7080689
9999999
Not Available
29
SCREW (10)
7517402
9999999
Not Available
30
ROD-TIE SLVR
5020970244
Not Available
31
SCREW
7515434
9999999
Not Available
32
ROD END; LEFT
7060166
$99,74 Unit Price incl. VAT
33
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
34
BUSHING
5010417
9999999
Not Available
35
ARM ASMIDLER
1820577
9999999
Not Available
36
TUBE SPACER
5010384
9999999
Not Available
37
O RING
5411220
$11,54 Unit Price incl. VAT
38
SCREW
7517574
9999999
Not Available
39
ASM-STEERING RACKW/WEBSRHP
1820692
9999999
Not Available

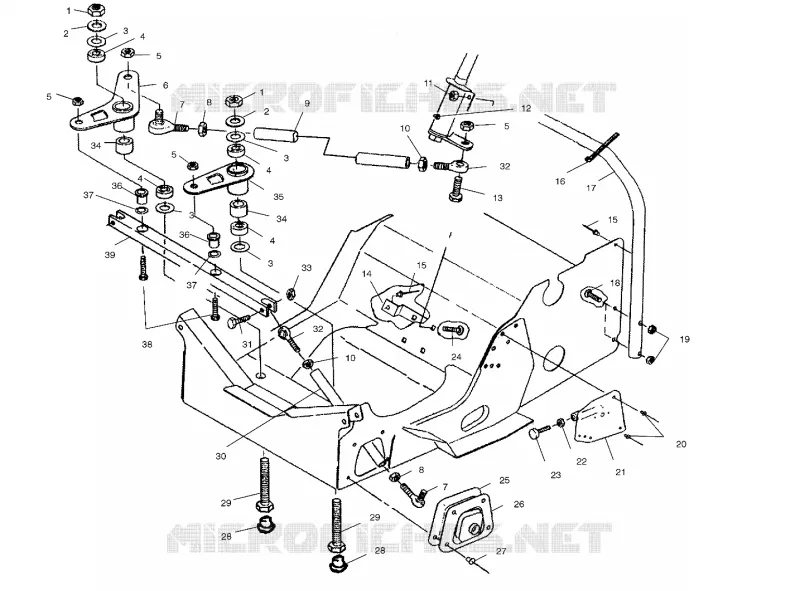

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
