GEARCASE-ASM HLR CDS 4X4
1341381
9999999
Not Available
1
SCREW CAP
3233734
9999999
Not Available
2
WASHER
3233054
9999999
Not Available
3
DAMPENER CARB VIBRATION
3233735
9999999
Not Available
4
PLUG
3233448
9999999
Not Available
5
WASHER
3233035
9999999
Not Available
6
PIVOT BUSHING
3233527
9999999
Not Available
7
SCREW
3233252
$9,44 Unit Price incl. VAT
8
GEARCASE-LH
3233632
9999999
Not Available
9
KNOCK PIPE
3233529
9999999
Not Available
10
BEARING
3233020
$80,84 Unit Price incl. VAT
11
GEAR O/P 100T HCR
3233360
9999999
Not Available
12
OUTPUT SHAFT
3233544
9999999
Not Available
13
SPROCKET 15/26T
3233729
9999999
Not Available
14
ROLLER CHAIN
3233546
9999999
Not Available
15
WASHER THRUST
3233542
9999999
Not Available
16
GARLOCK BUSHING
3233541
9999999
Not Available
17
PINION SHAFT; 13 TOOTH
3233540
9999999
Not Available
18
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
19
COVER-BEARING
3233263
9999999
Not Available
20
SCREW
3233539
9999999
Not Available
21
SPROCKET 15/22T
3233730
9999999
Not Available
22
RING RETAINING
3233537
9999999
Not Available
23
SHAFT-INPUT HIGH/LOW/REVERSE
3233704
9999999
Not Available
24
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
24
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
25
BEARING
3233018
$47,24 Unit Price incl. VAT
26
WASHER
3233176
$17,84 Unit Price incl. VAT
27
NEEDLE BEARING
3233718
$60,89 Unit Price incl. VAT
28
ENGAGEMENT DOG; LOW
3233732
9999999
Not Available
29
BEARING
3233019
$54,59 Unit Price incl. VAT
30
SPROCKET-24T
3233719
9999999
Not Available
31
RING RET-RING EXTERNAL
3233720
9999999
Not Available
32
SILENT CHAIN
3233036
9999999
Not Available
33
GEAR; 30T
3233722
9999999
Not Available
34
RING RETAINING
3233177
9999999
Not Available
35
SCREW
3233033
9999999
Not Available
35
SCREW-TAPPING W/LOCK WASHER
3233747
9999999
Not Available
36
BRACKET INTERLOCK
3233309
9999999
Not Available
37
SPRING
3233032
9999999
Not Available
38
PIN INTERLOCK
3233308
9999999
Not Available
39
DOG ENGAGEMENT HIGH/REV
3233721
9999999
Not Available
40
SHAFT REVERSE 29T
3233733
9999999
Not Available
41
GEAR 33T
3233731
9999999
Not Available
42
SHIFT FORK; LOW
3233706
9999999
Not Available
43
FORK SHIFT HIGH/REV
3233633
9999999
Not Available
44
BELLCRANK
3233547
9999999
Not Available
45
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
46
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
47
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
48
WASHER
3233040
9999999
Not Available
49
O-RING
3233548
9999999
Not Available
50
SHAFT SHIFT
3233549
9999999
Not Available
51
SCREW
3233691
3233749
$10,49 Unit Price incl. VAT
51
SCREW
3233749
$10,49 Unit Price incl. VAT
52
SWITCH-H/R ITW
3233635
9999999
Not Available
53
SWITCH ITW 2 POSITION
3233617
9999999
Not Available
54
OIL FILL PLUG
3233711
9999999
Not Available
55
WASHER
3233324
9999999
Not Available
56
COVER SNORKEL
3233556
9999999
Not Available
57
O-RING
3233555
9999999
Not Available
58
SHIM
3233554
$62,99 Unit Price incl. VAT
59
SNORKEL SUBASM SHAFT
3233723
9999999
Not Available
59
SHAFT-SNORKEL
3233899
9999999
Not Available
60
GEAR-25T
3233898
9999999
Not Available
61
GARLOCK BUSHING
3233552
$41,99 Unit Price incl. VAT
62
VENT
3233037
9999999
Not Available
63
SCREW
3233026
9999999
Not Available
64
CHAIN GUIDE
3233897
$89,24 Unit Price incl. VAT
65
GEARCASE RH H/L/R
3233799
9999999
Not Available
65
RIGHT GEARCASE HLR
3233895
9999999
Not Available
66
OIL DEFLECTOR
3233043
9999999
Not Available

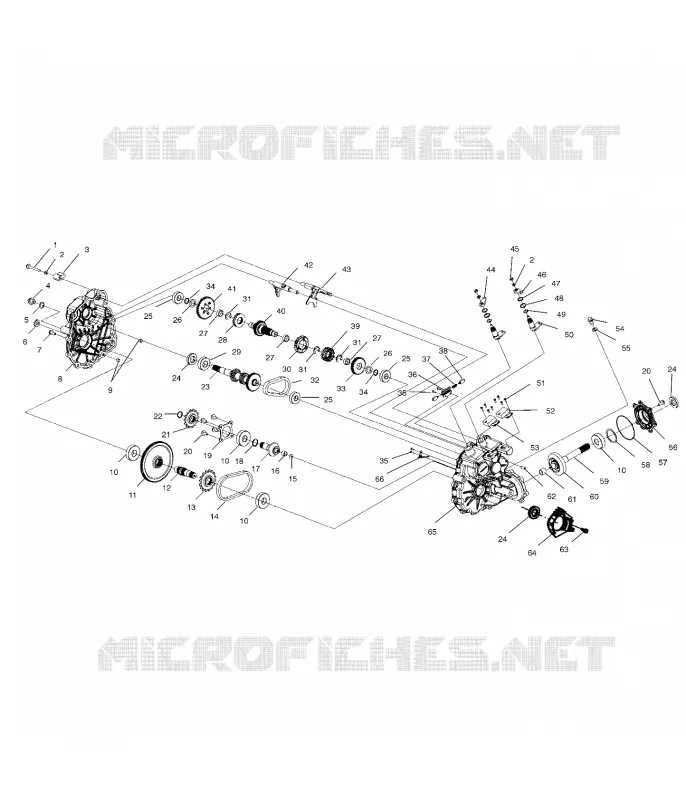

Find the detailed GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
