ELECTRICAL, BATTERY/BOX for POLARIS PROSTAR S4 VOYAGEUR 146 from 2023

DRIVE TRAIN, SHIFT LINKAGE

ELECTRICAL, HEADLIGHT AND TAILLIGHT

ELECTRICAL, BATTERY/BOX

-

STRAP-BATTERY CRADLE

2692016

$36,74 Unit Price incl. VAT

1

COVER-BATTERY BOX BLK

5273540329

Not Available

2

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$6,29 Unit Price incl. VAT

3

WELD-BATTERY BOX

1026107

$134,70 Unit Price incl. VAT

4

KIT-BATTERY BOLT

2202802

$7,34 Unit Price incl. VAT

5

PAD-5X5CM

5813593

$8,39 Unit Price incl. VAT

6

BATTERY 30 AMP HOUR TYPE AGM

4014609

$283,49 Unit Price incl. VAT

7

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

8

HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM

7518045

9999999

Not Available

9

SOLENOID-STARTER SEALED

4080541

$62,99 Unit Price incl. VAT

10

CABLE-SOLENOID/STARTER

4019620

$99,74 Unit Price incl. VAT

11

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

12

NUT

7546701

9999999

Not Available

13

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

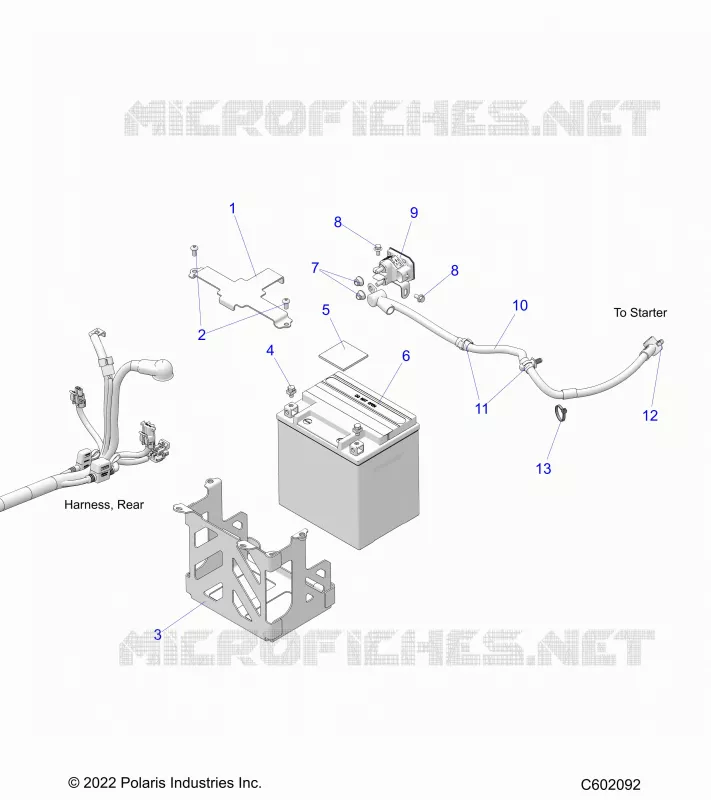

Find the detailed ELECTRICAL, BATTERY/BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
