1
Engine displacement
1000
2
Year
2023
3
Trim
PROSTAR S4 VOYAGEUR 146
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
SUSPENSION, RAIL BEAM LH/RH
by
SUSPENSION, FRONT TORQUE ARM
REAR SUSPENSION
1
1
1
1
2
2
3
3
3
3
4
4
4
5
6
6
6
7
7
8
8
8
8
8
8
8
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM
7518957
$6,29 Unit Price incl. VAT
2
HEX FLANGE SCREW; 10 MM X 1.5 MM X 40
7519216
$9,44 Unit Price incl. VAT
3
WASHER
7556153
$3,66 Unit Price incl. VAT
4
CLIP-TRACK FLAT 012-0107 (10
5251273
$18,89 Unit Price incl. VAT
4
TRACK-146 X1.352 COBRA CLIPPED
5417323
$1 249,49 Unit Price incl. VAT
4
LONG GUIDE TRACK CLIP
5251274
$13,64 Unit Price incl. VAT
5
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
6
WASHER 10.5 X 24 X 1.2446
7556545
$6,29 Unit Price incl. VAT
7
SPRING WASHER; .406 X 1.25 X .125
7556490
$9,44 Unit Price incl. VAT
8
BEARING-.7874X1.6535X.4724 NTN
3514384
3515142
$34,64 Unit Price incl. VAT
8
WHEEL SPOKE ASSEMBLY; 7.25
1590459
$82,94 Unit Price incl. VAT
8
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
9
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
10
BUSHING
7555918
$3,14 Unit Price incl. VAT
11
SHAFT-IDLER M10X1.5THDX336 LG
5136745
$62,99 Unit Price incl. VAT
12
IDLER SPACER; LONG
5333285
$20,99 Unit Price incl. VAT
13
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$36,74 Unit Price incl. VAT
14
CROSS SHAFT; RMK
5137418
$62,99 Unit Price incl. VAT
15
HEX FLANGE SCREW 10MM X 1.25MM X 250MM
7519327
$36,74 Unit Price incl. VAT
16
WELD-REAR PIVOT ARM; ECOAT
1544229329
Not Available
17
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
18
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
19
SHOCK CENTERING LIGHTWEIGHT SPACER
5450477
$15,74 Unit Price incl. VAT
20
SHAFT 17.45 X 214.77
5137312
$52,49 Unit Price incl. VAT
21
WSHR-.719X1.250X.065-Y
7556210
$7,34 Unit Price incl. VAT
22
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$52,49 Unit Price incl. VAT

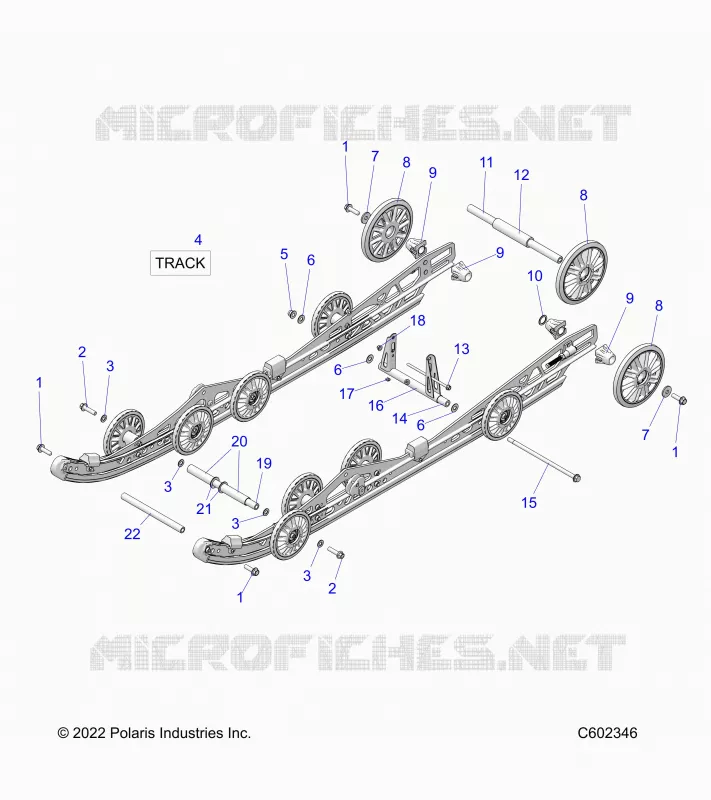

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
