SEAT for POLARIS SPORTSMAN FOREST TRACTOR 500 - A12MN50ET/EX from 2012

SEAT

1

ASM-SEAT TRACTOR

2684923

9999999

Not Available

1

SEAT COVERING

2684341

9999999

Not Available

2

SHOCK-SEAT TRACTOR

1500797

9999999

Not Available

3

BRACKET; LEVER RETAINER

5211033

9999999

Not Available

4

WELDMENT-SEAT LATCH

1016733

9999999

Not Available

5

BUMPER SHORT RUBBER

5412067

$7,34 Unit Price incl. VAT

6

SPRING LATCH

7041370

$17,84 Unit Price incl. VAT

7

BLIND RIVET

7621403

$2,09 Unit Price incl. VAT

8

WELD-SEAT SUSP ASM;BLK

1016876067

Not Available

9

MNT-SPRING LOWERED MACH

5136874

9999999

Not Available

10

BRKT-UPPER BUSHING

5246732

5257028

$62,99 Unit Price incl. VAT

11

TUBE-SPACER SEAT SHOCK

5336645

9999999

Not Available

12

BUSHING-UPPER STEERING;1 IN

5438903

5439731

$12,59 Unit Price incl. VAT

13

CMPRSSN SPNG 170 7.5IN X .343IN GS BLK

7042050067

Not Available

14

KNOB-SPRING ADJ

7081572

9999999

Not Available

15

BOLT

7517428

$4,19 Unit Price incl. VAT

16

SCR-3/8-16X2 FLG HX GR5 Z

7518278

$13,64 Unit Price incl. VAT

17

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

18

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

19

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

20

WELD-SEAT ADJUST BLK

1017077067

Not Available

21

COVER-SEAT;TRACTOR

2684470

9999999

Not Available

22

SCREW

7517646

$13,64 Unit Price incl. VAT

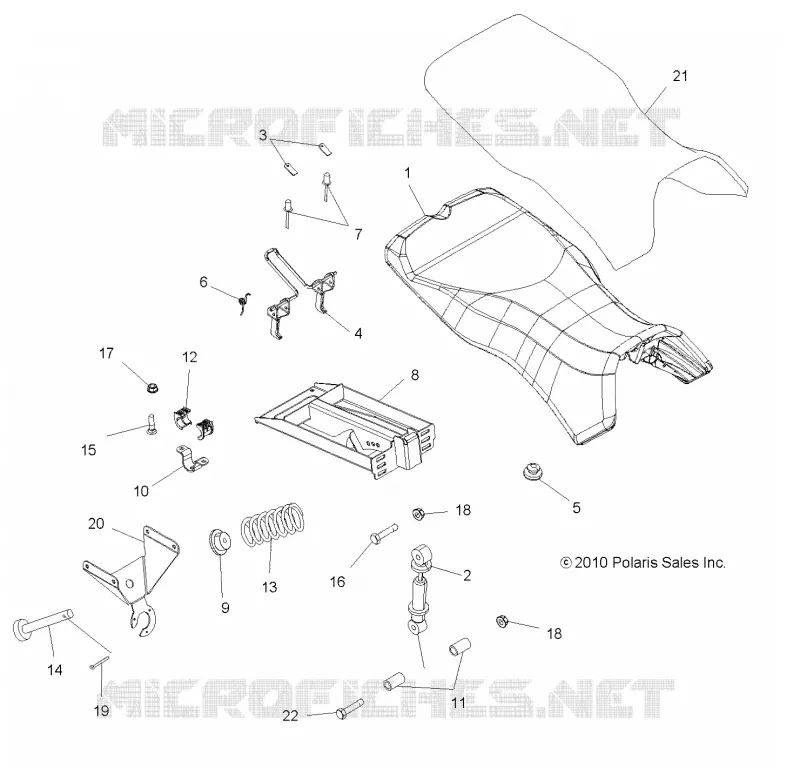

Find the detailed SEAT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
