IGNITION SYSTEM for POLARIS SPORTSMAN FOREST TRACTOR 500 - A12MN50ET/EX from 2012

IGNITION SYSTEM

1

PLATE ASSEMBLY

3089959

9999999

Not Available

2

O-RING

3084978

9999999

Not Available

3

SPARK PLUG

3070172

$7,34 Unit Price incl. VAT

4

BOLT FLANGE

3083361

9999999

Not Available

5

FLYWHEEL W/ RING GEAR

3089905

9999999

Not Available

6

RIVET

7661637

$2,09 Unit Price incl. VAT

7

COIL-IGNITION 500EFI

4011834

4015072

$204,74 Unit Price incl. VAT

8

SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)

7518196

$2,09 Unit Price incl. VAT

9

BRKT-COIL MNT

5249815

9999999

Not Available

10

WIRE SPARK PLUG; SINGLE; 365 MM

4011691

9999999

Not Available

11

OIL SEAL

3084973

9999999

Not Available

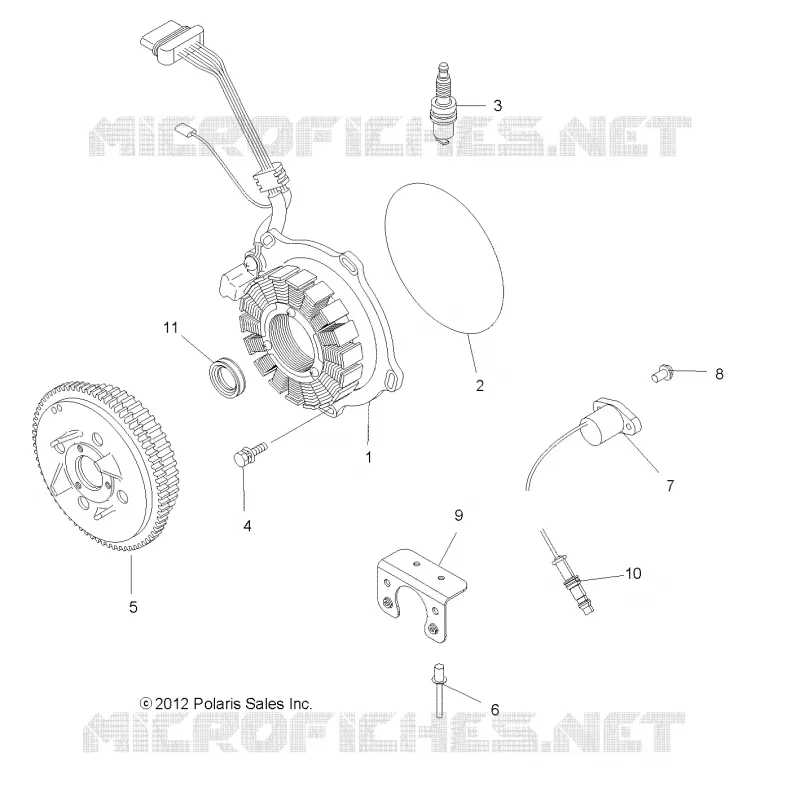

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
