Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
DRIVE TRAIN, SECONDARY CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
EBS DRV CTCH ASM
1323286
$834,74 Unit Price incl. VAT
2
SPRING WASHER; .406 X 1.25 X .125
7556490
$9,44 Unit Price incl. VAT
3
HEX FLANGE BOLT OLIVE 10MMX1.25MMX60MM
7519210
$3,14 Unit Price incl. VAT
4
ORV DRIVE BELT
3211149
$236,24 Unit Price incl. VAT
5
SCREW-HELIX; PATCH
3234754
$10,49 Unit Price incl. VAT
6
SLOTTED SPRING PIN; .125 X .625
3234202
$7,34 Unit Price incl. VAT
7
EXTERNAL RETAINING RING; 1.500
7710522
$25,19 Unit Price incl. VAT
8
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
9
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
10
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
11
ANGULAR CONTACT BALL BEARING
3234203
$40,94 Unit Price incl. VAT
12
COMPRESSION SPRING; RED
3234452
$173,24 Unit Price incl. VAT
13
ROLLER PIN
3234201
$31,49 Unit Price incl. VAT
14
CAM EBS 58 STRT BA-28-1.179
3235545
9999999
Not Available
15
RETAINER-SPRING INNER (2 TAB)
7710564
2206554
$115,49 Unit Price incl. VAT
16
SECONDARY CLUTCH ROLLER
5434534
$89,24 Unit Price incl. VAT
17
THRUST WASHER
7556745
$10,49 Unit Price incl. VAT

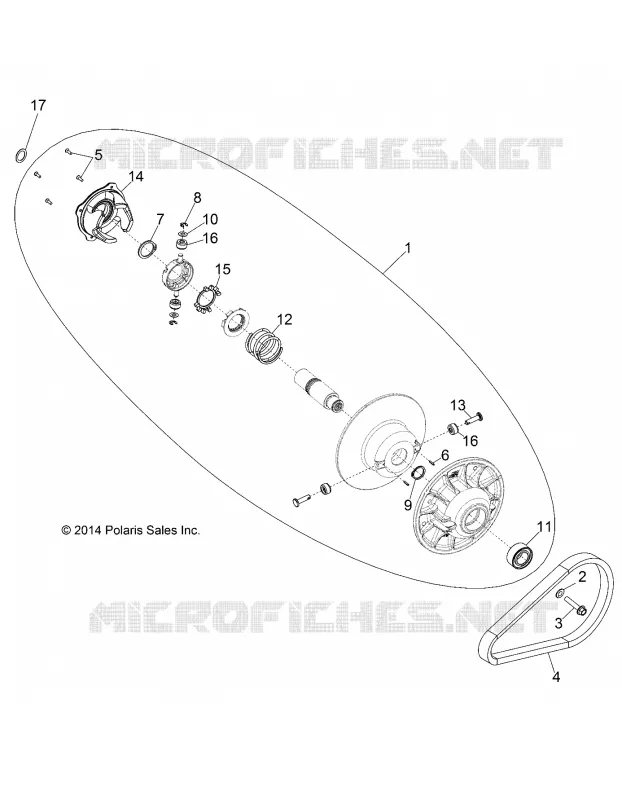

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
