1
Engine displacement
850
2
Year
2020
3
Trim
850 AXYS PRO-RMK 155 / 155 3"
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
EXHAUST
by
ELECTRICAL, HEADLIGHT AND TAILLIGHT
ENGINE, COOLING SYSTEM
1
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
2
SINGLE COOLANT BOTTLE WELD
1241176
$136,49 Unit Price incl. VAT
3
FUEL LINE; 1/4 ID
84500031525
Not Available
4
CLIP-EDGE 1-3MM THICKNESS
7082427
$10,49 Unit Price incl. VAT
4
BRKT-CONNECTOR PLACEMENT
5454759
$12,59 Unit Price incl. VAT
5
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
6
RIVET
7661637
$2,09 Unit Price incl. VAT
7
BRKT-COOLANT BOTTLE
5264108
$12,59 Unit Price incl. VAT
8
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
9
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
10
HOSE-TUNNEL/BOTTLE
5416318
9999999
Not Available
11
BOTTLE AND TUNNEL HOSE
5416317
9999999
Not Available
12
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
12
SUPPORT-THROTTLE CABLE/HOSE
5416538
$26,24 Unit Price incl. VAT
12
BYPASS HOSE
5416321
$52,49 Unit Price incl. VAT
13
SUPPORT-FUEL LINE/OIL LINE
5416539
$13,64 Unit Price incl. VAT
13
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
14
SUPPORT-STATOR WIRE
5416551
$20,99 Unit Price incl. VAT
14
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
14
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
15
SPRINGBAND-CLAMP 38/12;BLK
7082025
$10,49 Unit Price incl. VAT
16
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
17
HOSE-BOTTLE/TEE
5416864
$157,49 Unit Price incl. VAT
18
HOSE SUPPORT
5416866
$52,49 Unit Price incl. VAT
18
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
19
SUPPORT HOSE
5416524
$62,99 Unit Price incl. VAT
19
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
20
SUPPORT-HOSE/ELECTRICAL WIRES
5416536
$47,24 Unit Price incl. VAT
20
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
20
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
21
HOSE-TBODY/COOLANT BOTTLE
5416289
5417221
$27,29 Unit Price incl. VAT
22
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
23
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT

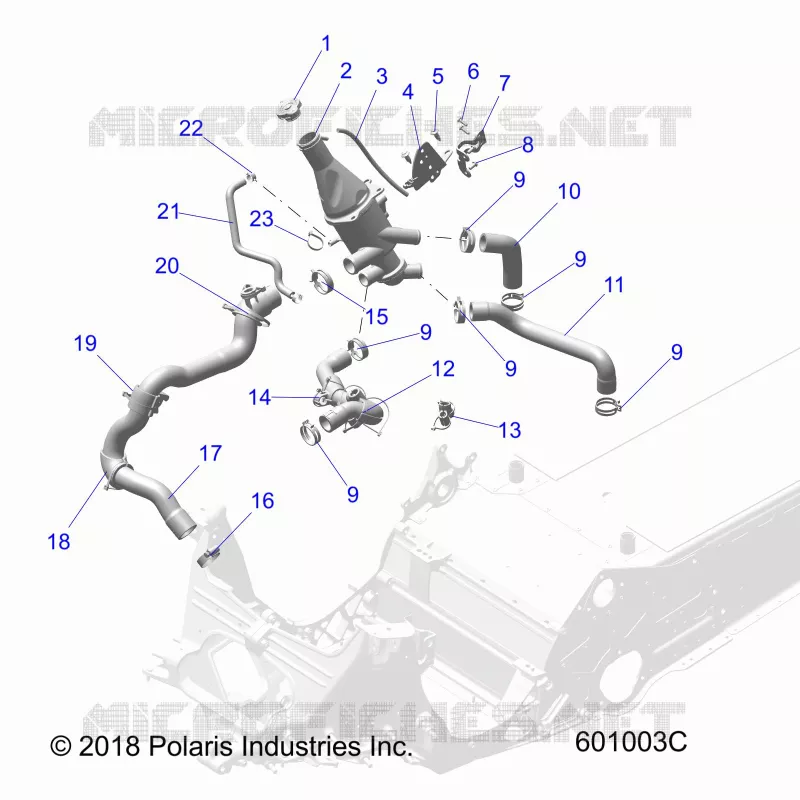

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
