1
Engine displacement
850
2
Year
2020
3
Trim
850 AXYS PRO-RMK 155 / 155 3"
4
Parts Catalog
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS
5
Parts Diagram
Parts Catalog
DECALS, SNOW CHECK, BLK SIDE PANEL W/BLUE ACCENT
by
ENGINE, MOUNTING
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS
1
2
2
2
2
3
4
4
5
6
7
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
11
12
13
1
ASM-TOE STOP RH
1024947
1025683
$120,74 Unit Price incl. VAT
2
RIVET
7661637
$2,09 Unit Price incl. VAT
3
CAPLUG #BPF-7/8 -6 BLACK
7080936
$5,24 Unit Price incl. VAT
4
POP RIVET
7621402
$2,09 Unit Price incl. VAT
5
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
6
ASM-GUARD CLUTCH
1023403
$115,49 Unit Price incl. VAT
7
TOE STOP ASSEMBLY; LEFT
1020099
$120,74 Unit Price incl. VAT
8
SCR-RHCAR-M6X1.0X20 8.8 ZPC
7519338
$6,29 Unit Price incl. VAT
9
ASM-RUNNINGBOARD LH GGREY
1023199728
Not Available
9
ASM-RUNNINGBOARD RH GGREY
1023200728
Not Available
9
RUNNING BOARD ASM LEFT INDIAN SKY BLUE
1023199737
Not Available
9
ASM-RUNNINGBOARD LH MDNTBLUE
1023199485
Not Available
9
ASM-RUNNINGBOARD RH MDNTBLUE
1023200485
Not Available
9
RUNNING BOARD ASSEMBLY; RIGHT; INDY RED
1023200293
Not Available
9
RUNNGINBOARD ASSEMBLY; RIGHT
1023200
9999999
Not Available
9
RUNNINGBOARD ASSEMBLY; LEFT
1023199
$383,24 Unit Price incl. VAT
9
RUNNINGBOARD ASM RIGHT INDIAN SKY BLUE
1023200737
Not Available
9
RUNNING BOARD ASM LEFT GLOSS GS BLK
1023199067
Not Available
9
RUNNINGBOARD ASM RIGHT GLOSS GS BLK
1023200067
Not Available
9
RUNNING BOARD ASSEMBLY; LEFT; INDY RED
1023199293
Not Available
10
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
11
WASHER
7556064
$9,44 Unit Price incl. VAT
12
BOLT-CARR M6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
13
WRENCH-8MMX10MM OPEN END
Not Available

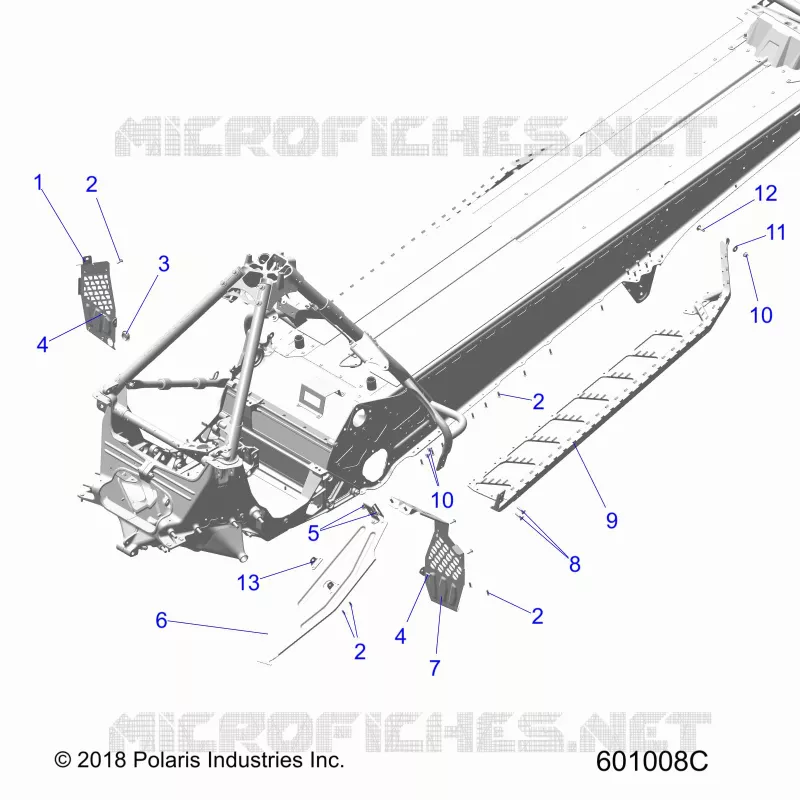

Find the detailed CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
