Engine displacement
570
2
Year
2016
3
Trim
RANGER 570 EU
4
Parts Catalog
FLOOR AND FENDERS
5
Parts Diagram
Parts Catalog
DECALS
by
FUEL TANK ASM.
FLOOR AND FENDERS
1
2
3
4
5
6
6
7
7
8
8
8
9
9
9
10
10
11
11
11
11
12
13
13
14
15
16
17
10
10
1
DRIVE COVER SHAFT; FLOOR
5437782
$120,74 Unit Price incl. VAT
2
FLOOR-REAR BLK
5452438070
Not Available
3
FENDER W/ ROCKER REAR RIGHT GLOSS BLACK
5451012070
Not Available
4
FLOOD; LEFT; GLOSS BLACK
5451130070
Not Available
5
FLOOR; RIGHT; GLOSS BLACK
5451131070
Not Available
6
FOAM-FLOOR BACK
5814010
9999999
Not Available
6
FOIL-FLOOR BACK
5814297
9999999
Not Available
7
SCR-TXTH-M6X1.0X45 RIE
7519722
$3,14 Unit Price incl. VAT
8
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
9
BOLT
7519650
$7,34 Unit Price incl. VAT
10
FOIL-HEAT SHIELD
5814413
9999999
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
CUP HOLDER
5436836
$36,74 Unit Price incl. VAT
12
FLOOR; FRONT; GLOSS BLACK
5451010070
Not Available
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
14
FENDER W/ ROCKER REAR LEFT GLOSS BLACK
5451011070
Not Available
15
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
16
GROMMET
5439179
$12,59 Unit Price incl. VAT
17
CLOSEOFF PANEL KIT; REAR; LOWER
2206621
9999999
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

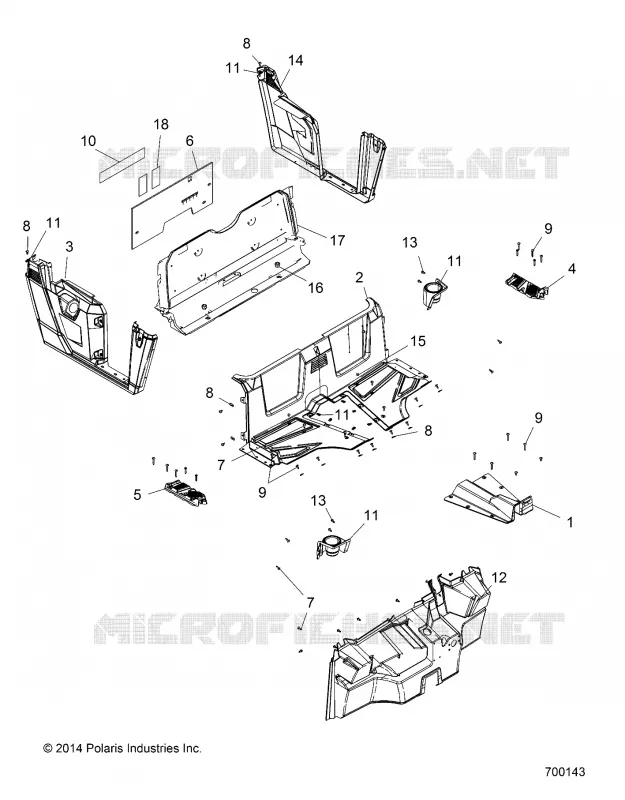

Find the detailed FLOOR AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
