Engine displacement
570
2
Year
2016
3
Trim
RANGER 570 EU
4
Parts Catalog
ENGINE, EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, ENGINE AND TRANSMISSION MOUNTING
by
STEERING
ENGINE, EXHAUST SYSTEM
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
HEAT SHIELD EXHAUST CLAMP
7081156
$13,64 Unit Price incl. VAT
2
ASM-SILENCER
1262446
1263595
$509,24 Unit Price incl. VAT
3
SCREW
7515197
$2,09 Unit Price incl. VAT
4
HEX FLANGE HD SCREW; 6 MM X 12 MM
7517257
$17,84 Unit Price incl. VAT
5
NUT
7547120
$9,44 Unit Price incl. VAT
6
MUFFLER TIP SPARK ARRESTOR
1262239
$89,24 Unit Price incl. VAT
7
BUSHING
5010192
$12,59 Unit Price incl. VAT
8
EXHAUST SEAL
5256385
$52,49 Unit Price incl. VAT
9
HEADPIPE ASSEMBLY
1262518
1263620
$488,24 Unit Price incl. VAT
10
WASHER 15.4 X 38.1 X 7.9 RUB
5414945
$9,44 Unit Price incl. VAT
11
VIBRATION DAMPER
5414946
$9,44 Unit Price incl. VAT
12
SPRING
7041789
$16,79 Unit Price incl. VAT
13
WASHER
7555716
$3,14 Unit Price incl. VAT
14
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
15
EXHAUST SEALING GASKET
5253989
$52,49 Unit Price incl. VAT
16
HX SCREW 8MMX1.25PX22MML
7518984
$14,69 Unit Price incl. VAT
17
SCR-CAR M8X1.25 40 8.8 ZOD
7519305
9999999
Not Available

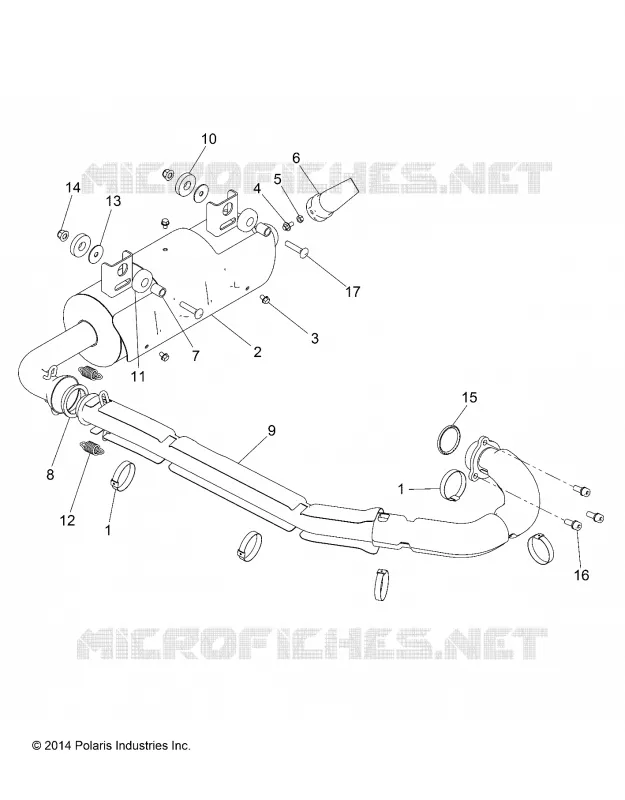

Find the detailed ENGINE, EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
