1
Engine displacement
autre
2
Year
1993
3
Trim
EURO XLT - E930767
4
Parts Catalog

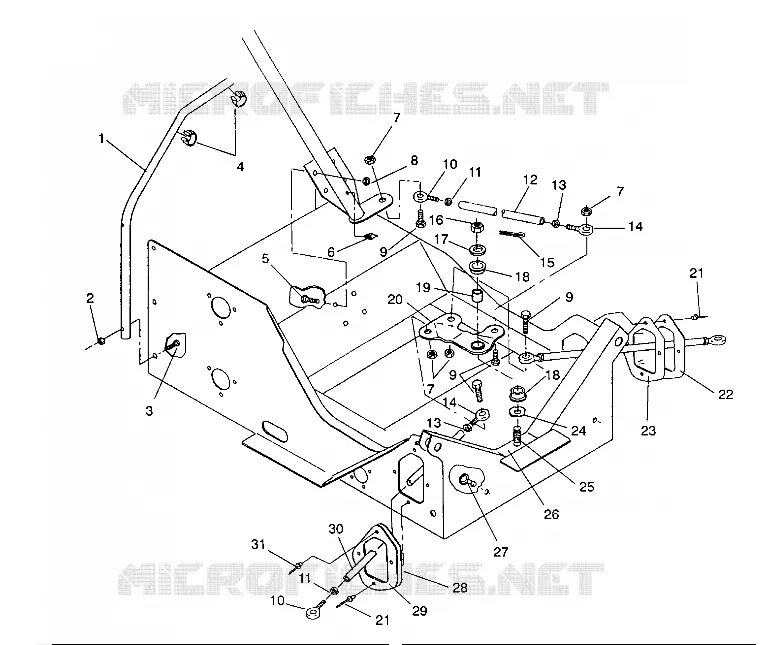

STEERING ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301015A)
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT TORQUE ARM XLT SP/0930667 (4923012301022A)
STEERING ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301015A)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
31
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
31
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
31
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
31
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
31
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
31
1
HOOP STEERING
1011513067
Not Available
2
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
3
BOLT-CARRIAGE
7512275
9999999
Not Available
4
CLIP
7080278
9999999
Not Available
5
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
6
FITTING-LUBE.
7080220
9999999
Not Available
7
NUT LOCK
7542403
9999999
Not Available
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
BOLT
7512404
$7,34 Unit Price incl. VAT
10
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
11
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
12
ROD-DRAG LINK
5332712
9999999
Not Available
13
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
14
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
15
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
16
NUT
7542712
$17,84 Unit Price incl. VAT
17
WASHER
7555721
$2,09 Unit Price incl. VAT
18
BUSHING
3563907
$7,34 Unit Price incl. VAT
19
BUSHING-SPACER
5010161
9999999
Not Available
20
ARM STEERING CTR.
1822047067
Not Available
21
RIVET(10)
7621301
9999999
Not Available
22
PLATELHBOOTSEAL
5210959
5210959-067
Not Available
23
BOOT LH
5410388
9999999
Not Available
24
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
25
BOLT
7512658
9999999
Not Available
26
BLOCK STEERING
5630375
Not Available
27
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
28
BOOT-TIE ROD
5410328
9999999
Not Available
29
PLATE RH BOOT SEAL
5210904
9999999
Not Available
30
ROD TIE (BLK.)
5020432067
Not Available
30
ROD TIE BLACK
5332713067
Not Available
30
TIEROD
5020636067
Not Available
31
POP RIVET
7621303
9999999
Not Available

Find the detailed STEERING ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301015A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for EURO XLT - E930767

SEAT GAS TANK ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301002A)

SEAT GAS TANK ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301002A)

for EURO XLT - E930767 from 1993

NOSEPAN XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301003A)

NOSEPAN XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301003A)

for EURO XLT - E930767 from 1993

HOOD ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301005A)

HOOD ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301005A)

for EURO XLT - E930767 from 1993

HOOD

HOOD

for EURO XLT - E930767 from 1993

HOOD

HOOD

for EURO XLT - E930767 from 1993

STEERING

STEERING

for EURO XLT - E930767 from 1993

STEERING ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301015A)

STEERING ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301015A)

for EURO XLT - E930767 from 1993

FRONT TORQUE ARM XLT SP/0930667 (4923012301022A)

FRONT TORQUE ARM XLT SP/0930667 (4923012301022A)

for EURO XLT - E930767 from 1993

FRONT TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301023A)

FRONT TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301023A)

for EURO XLT - E930767 from 1993

REAR TORQUE ARM XLT SP/0930667 (4923012301024A)

REAR TORQUE ARM XLT SP/0930667 (4923012301024A)

for EURO XLT - E930767 from 1993

REAR TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301025A)

REAR TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301025A)

for EURO XLT - E930767 from 1993

OIL TANK/AIR BOX XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301030A)

OIL TANK/AIR BOX XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301030A)

for EURO XLT - E930767 from 1993

FOX SHOCK XLT SP/0930667 (4923012301031A)

FOX SHOCK XLT SP/0930667 (4923012301031A)

for EURO XLT - E930767 from 1993

CRANKCASE ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301032A)

CRANKCASE ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301032A)

for EURO XLT - E930767 from 1993

CYLINDER XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301033A)

CYLINDER XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301033A)

for EURO XLT - E930767 from 1993

WATER PUMP XLT/0930767,XLT SP/0930667 XLT SKS/ 0930567 (4923012301034A)

WATER PUMP XLT/0930767,XLT SP/0930667 XLT SKS/ 0930567 (4923012301034A)

for EURO XLT - E930767 from 1993

MAGNETO ASSEMBLY XLT/0930767, XLT SP/0930667 XLT SKS/09305673 (4923012301039A)

MAGNETO ASSEMBLY XLT/0930767, XLT SP/0930667 XLT SKS/09305673 (4923012301039A)

for EURO XLT - E930767 from 1993

RECOIL STARTER ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301040A)

RECOIL STARTER ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301040A)

for EURO XLT - E930767 from 1993

MASTER CYLINDER EUROPEAN 440,440 SKS,5OO EFI,EFI SKS, RXL,RXL SKS, (49237723770002)

MASTER CYLINDER EUROPEAN 440,440 SKS,5OO EFI,EFI SKS, RXL,RXL SKS, (49237723770002)

for EURO XLT - E930767 from 1993

CLUTCH GUARD/REFLECTOR ASSEMBLY EUROPEAN 440,440 SKS,500 EFI,EFI SKS,LITE (49237723770003)

CLUTCH GUARD/REFLECTOR ASSEMBLY EUROPEAN 440,440 SKS,500 EFI,EFI SKS,LITE (49237723770003)

for EURO XLT - E930767 from 1993

SEAT ASSEMBLY EUROPEAN EFI SKS,440 SKS, XLT, XLT SKS (49237723770001)

SEAT ASSEMBLY EUROPEAN EFI SKS,440 SKS, XLT, XLT SKS (49237723770001)

for EURO XLT - E930767 from 1993

TUNNEL ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301001A)

TUNNEL ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301001A)

for EURO XLT - E930767 from 1993

CONSOLE XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301009A)

CONSOLE XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301009A)

for EURO XLT - E930767 from 1993

FRONT SUSPENSION AND SKI XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301011A)

FRONT SUSPENSION AND SKI XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301011A)

for EURO XLT - E930767 from 1993

COOLING SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301013A)

COOLING SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301013A)

for EURO XLT - E930767 from 1993

DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301018A)

DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301018A)

for EURO XLT - E930767 from 1993

SUSPENSION ASSEMBLY XLT/0930767 (4923012301019A)

SUSPENSION ASSEMBLY XLT/0930767 (4923012301019A)

for EURO XLT - E930767 from 1993

SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A)

SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A)

for EURO XLT - E930767 from 1993

SUSPENSION ASSEMBLY XLT SKS/0930567 (4923012301021A)

SUSPENSION ASSEMBLY XLT SKS/0930567 (4923012301021A)

for EURO XLT - E930767 from 1993

DRIVE CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301026A)

DRIVE CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301026A)

for EURO XLT - E930767 from 1993

DRIVEN CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301027A)

DRIVEN CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301027A)

for EURO XLT - E930767 from 1993

ENGINE MOUNTING XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301028A)

ENGINE MOUNTING XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301028A)

for EURO XLT - E930767 from 1993

EXHAUST SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301029A)

EXHAUST SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301029A)

for EURO XLT - E930767 from 1993

PISTON CRANKSHAFT XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301035A)

PISTON CRANKSHAFT XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301035A)

for EURO XLT - E930767 from 1993

CARBURETOR XLT/0930767,XLT SP/0930667 XLT SKS/09305673 (4923012301036A)

CARBURETOR XLT/0930767,XLT SP/0930667 XLT SKS/09305673 (4923012301036A)

for EURO XLT - E930767 from 1993

FUEL PUMP XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301037A)

FUEL PUMP XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301037A)

for EURO XLT - E930767 from 1993

OIL PUMP ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301038A)

OIL PUMP ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301038A)

for EURO XLT - E930767 from 1993

HITCH ASSEMBLY European 440,440 SKS,500 EFI,EFI SKS, RXL SKS,Sport,Trail,XL (49237723770004)

HITCH ASSEMBLY European 440,440 SKS,500 EFI,EFI SKS, RXL SKS,Sport,Trail,XL (49237723770004)

for EURO XLT - E930767 from 1993

BRAKE CHAINCASE EUROPEAN 440,400 SKS,500 EFI, EFI SKS,RXL SKS,SPORT,TR (49237723770007)

BRAKE CHAINCASE EUROPEAN 440,400 SKS,500 EFI, EFI SKS,RXL SKS,SPORT,TR (49237723770007)

for EURO XLT - E930767 from 1993

POLARIS EURO XLT - E930767 1993

EURO XLT - E930767

EURO XLT - E930767

Model : OTHERS

Engine capacity : autre

Year : 1993

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
