1
Engine displacement
autre
2
Year
1993
3
Trim
EURO XLT - E930767
4
Parts Catalog

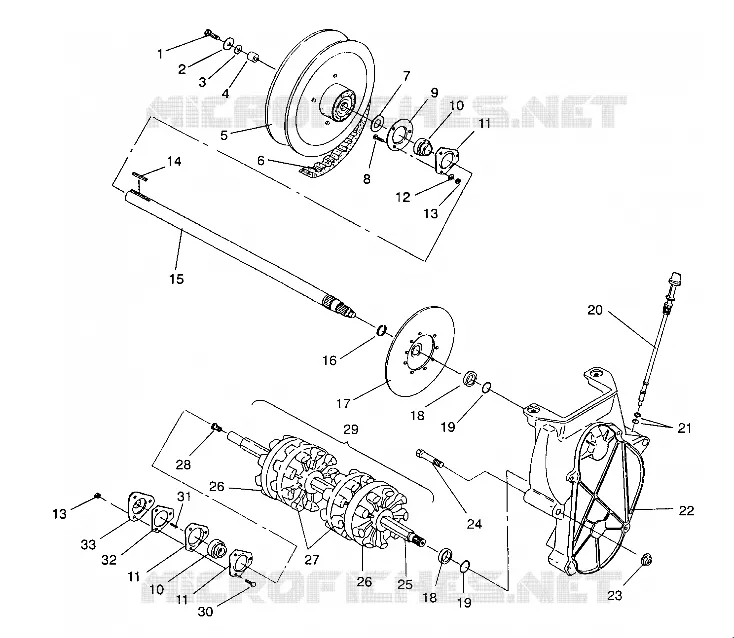

DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301018A)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301013A)
by
SUSPENSION ASSEMBLY XLT/0930767 (4923012301019A)
DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301018A)
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
10
10
10
11
11
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
28
28
29
29
30
30
31
31
32
32
33
33
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
10
10
10
11
11
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
28
28
29
29
30
30
31
31
32
32
33
33
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
10
10
10
11
11
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
28
28
29
29
30
30
31
31
32
32
33
33
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
10
10
10
11
11
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
28
28
29
29
30
30
31
31
32
32
33
33
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
10
10
10
11
11
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
28
28
29
29
30
30
31
31
32
32
33
33
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
10
10
10
11
11
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
22
22
23
23
24
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
28
28
29
29
30
30
31
31
32
32
33
33
1
BOLT
7515301
9999999
Not Available
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
9999999
Not Available
5
CLUTCH 34DEG DRIVEN Substituted by 1322154
1322106
Not Available
6
SNOWMOBILE DRIVE BELT
3211042
$141,21 Unit Price incl. VAT
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE W/GREASE GROOVE
5222581
9999999
Not Available
10
BEARING
3514513
9999999
Not Available
10
JACKSHAFT BEARING
3514519
9999999
Not Available
11
FLANGETTE
5222591
9999999
Not Available
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
KEY-SQUARE
7721204
9999999
Not Available
15
JACKSHAFT ASM BLK.
1332141067
Not Available
16
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
17
DISC ASM BRAKE
1910086
9999999
Not Available
18
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
19
O-RING
5410613
$3,66 Unit Price incl. VAT
20
DIPSTICK
5431419
1332143
$89,24 Unit Price incl. VAT
21
O-RING
5410675
$3,14 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
24
BOLT CARRIAGE
7515428
9999999
Not Available
25
DRIVE SHAFT
6230067
9999999
Not Available
26
SPROCKET 9T
5430571
9999999
Not Available
26
SPROCKET HALF9T
5430993
9999999
Not Available
27
SPROCKET 9T
5430571
9999999
Not Available
27
SPROCKET HALF9T
5430993
9999999
Not Available
28
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
29
DRIVESHAFT ASM. Substituted by 1590245
1590229
Not Available
30
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
31
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
32
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
33
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT

Find the detailed DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301018A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for EURO XLT - E930767

SEAT GAS TANK ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301002A)

SEAT GAS TANK ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301002A)

for EURO XLT - E930767 from 1993

NOSEPAN XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301003A)

NOSEPAN XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301003A)

for EURO XLT - E930767 from 1993

HOOD ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301005A)

HOOD ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301005A)

for EURO XLT - E930767 from 1993

HOOD

HOOD

for EURO XLT - E930767 from 1993

HOOD

HOOD

for EURO XLT - E930767 from 1993

STEERING

STEERING

for EURO XLT - E930767 from 1993

STEERING ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301015A)

STEERING ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301015A)

for EURO XLT - E930767 from 1993

FRONT TORQUE ARM XLT SP/0930667 (4923012301022A)

FRONT TORQUE ARM XLT SP/0930667 (4923012301022A)

for EURO XLT - E930767 from 1993

FRONT TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301023A)

FRONT TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301023A)

for EURO XLT - E930767 from 1993

REAR TORQUE ARM XLT SP/0930667 (4923012301024A)

REAR TORQUE ARM XLT SP/0930667 (4923012301024A)

for EURO XLT - E930767 from 1993

REAR TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301025A)

REAR TORQUE ARM XLT/0930767 XLT SKS/0930567 (4923012301025A)

for EURO XLT - E930767 from 1993

OIL TANK/AIR BOX XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301030A)

OIL TANK/AIR BOX XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301030A)

for EURO XLT - E930767 from 1993

FOX SHOCK XLT SP/0930667 (4923012301031A)

FOX SHOCK XLT SP/0930667 (4923012301031A)

for EURO XLT - E930767 from 1993

CRANKCASE ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301032A)

CRANKCASE ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301032A)

for EURO XLT - E930767 from 1993

CYLINDER XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301033A)

CYLINDER XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301033A)

for EURO XLT - E930767 from 1993

WATER PUMP XLT/0930767,XLT SP/0930667 XLT SKS/ 0930567 (4923012301034A)

WATER PUMP XLT/0930767,XLT SP/0930667 XLT SKS/ 0930567 (4923012301034A)

for EURO XLT - E930767 from 1993

MAGNETO ASSEMBLY XLT/0930767, XLT SP/0930667 XLT SKS/09305673 (4923012301039A)

MAGNETO ASSEMBLY XLT/0930767, XLT SP/0930667 XLT SKS/09305673 (4923012301039A)

for EURO XLT - E930767 from 1993

RECOIL STARTER ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301040A)

RECOIL STARTER ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301040A)

for EURO XLT - E930767 from 1993

MASTER CYLINDER EUROPEAN 440,440 SKS,5OO EFI,EFI SKS, RXL,RXL SKS, (49237723770002)

MASTER CYLINDER EUROPEAN 440,440 SKS,5OO EFI,EFI SKS, RXL,RXL SKS, (49237723770002)

for EURO XLT - E930767 from 1993

CLUTCH GUARD/REFLECTOR ASSEMBLY EUROPEAN 440,440 SKS,500 EFI,EFI SKS,LITE (49237723770003)

CLUTCH GUARD/REFLECTOR ASSEMBLY EUROPEAN 440,440 SKS,500 EFI,EFI SKS,LITE (49237723770003)

for EURO XLT - E930767 from 1993

SEAT ASSEMBLY EUROPEAN EFI SKS,440 SKS, XLT, XLT SKS (49237723770001)

SEAT ASSEMBLY EUROPEAN EFI SKS,440 SKS, XLT, XLT SKS (49237723770001)

for EURO XLT - E930767 from 1993

TUNNEL ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301001A)

TUNNEL ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301001A)

for EURO XLT - E930767 from 1993

CONSOLE XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301009A)

CONSOLE XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301009A)

for EURO XLT - E930767 from 1993

FRONT SUSPENSION AND SKI XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301011A)

FRONT SUSPENSION AND SKI XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301011A)

for EURO XLT - E930767 from 1993

COOLING SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301013A)

COOLING SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301013A)

for EURO XLT - E930767 from 1993

DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301018A)

DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301018A)

for EURO XLT - E930767 from 1993

SUSPENSION ASSEMBLY XLT/0930767 (4923012301019A)

SUSPENSION ASSEMBLY XLT/0930767 (4923012301019A)

for EURO XLT - E930767 from 1993

SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A)

SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A)

for EURO XLT - E930767 from 1993

SUSPENSION ASSEMBLY XLT SKS/0930567 (4923012301021A)

SUSPENSION ASSEMBLY XLT SKS/0930567 (4923012301021A)

for EURO XLT - E930767 from 1993

DRIVE CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301026A)

DRIVE CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301026A)

for EURO XLT - E930767 from 1993

DRIVEN CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301027A)

DRIVEN CLUTCH ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301027A)

for EURO XLT - E930767 from 1993

ENGINE MOUNTING XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301028A)

ENGINE MOUNTING XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301028A)

for EURO XLT - E930767 from 1993

EXHAUST SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301029A)

EXHAUST SYSTEM XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301029A)

for EURO XLT - E930767 from 1993

PISTON CRANKSHAFT XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301035A)

PISTON CRANKSHAFT XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301035A)

for EURO XLT - E930767 from 1993

CARBURETOR XLT/0930767,XLT SP/0930667 XLT SKS/09305673 (4923012301036A)

CARBURETOR XLT/0930767,XLT SP/0930667 XLT SKS/09305673 (4923012301036A)

for EURO XLT - E930767 from 1993

FUEL PUMP XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301037A)

FUEL PUMP XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301037A)

for EURO XLT - E930767 from 1993

OIL PUMP ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301038A)

OIL PUMP ASSEMBLY XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301038A)

for EURO XLT - E930767 from 1993

HITCH ASSEMBLY European 440,440 SKS,500 EFI,EFI SKS, RXL SKS,Sport,Trail,XL (49237723770004)

HITCH ASSEMBLY European 440,440 SKS,500 EFI,EFI SKS, RXL SKS,Sport,Trail,XL (49237723770004)

for EURO XLT - E930767 from 1993

BRAKE CHAINCASE EUROPEAN 440,400 SKS,500 EFI, EFI SKS,RXL SKS,SPORT,TR (49237723770007)

BRAKE CHAINCASE EUROPEAN 440,400 SKS,500 EFI, EFI SKS,RXL SKS,SPORT,TR (49237723770007)

for EURO XLT - E930767 from 1993

POLARIS EURO XLT - E930767 1993

EURO XLT - E930767

EURO XLT - E930767

Model : OTHERS

Engine capacity : autre

Year : 1993

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
