Engine displacement
500
2
Year
2002
3
Trim
SPORTSMAN 500 ALL OPTIONS - A02CH50
4
Parts Catalog
DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
HANDLEBAR HEADLIGHT POD
by
DRIVEN CLUTCH
DRIVE CLUTCH
1
2
3
4
4
5
5
5
5
6
6
7
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
19
19
19
20
21
22
23
24
25
1
ONE WAY DRIVE CLUTCH
1520231
9999999
Not Available
2
WASHER BRASS 1.39 X 1.99 X .
7556202
9999999
Not Available
3
SPACER-1.25X2.25 PM
5631119
9999999
Not Available
4
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
5
BUTTON CLUTCH (10)
5431936
5439254
$14,69 Unit Price incl. VAT
6
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
7
BEARING / BUSHING
3585712
$54,59 Unit Price incl. VAT
8
NUT JAM
7547130
9999999
Not Available
9
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
10
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
11
BOLT
7512176
7512163
$7,34 Unit Price incl. VAT
12
CLUTCH SPRING
7041157
$89,24 Unit Price incl. VAT
13
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
14
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
15
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
16
CLUTCH WEIGHT
5632283
$73,49 Unit Price incl. VAT
17
BRAKING DRIVE CLUTCH ASSEMBLY
1321706
$1 081,49 Unit Price incl. VAT
18
WASHER; 1.39 X 2.24 X .030
7556204
9999999
Not Available
19
SPACER .020
5210752
$3,14 Unit Price incl. VAT
19
SPACER .025
5242981
$7,34 Unit Price incl. VAT
19
SPACER .050
5210754
$6,29 Unit Price incl. VAT
19
SPACER .032
5210753
$4,19 Unit Price incl. VAT
20
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
21
BUSHING
5430261
$13,64 Unit Price incl. VAT
22
WASHER
5210748
$7,34 Unit Price incl. VAT
23
BOLT
7512566
9999999
Not Available
24
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
25
CLUTCH DRIVE
1321632
1321976
$1 081,49 Unit Price incl. VAT

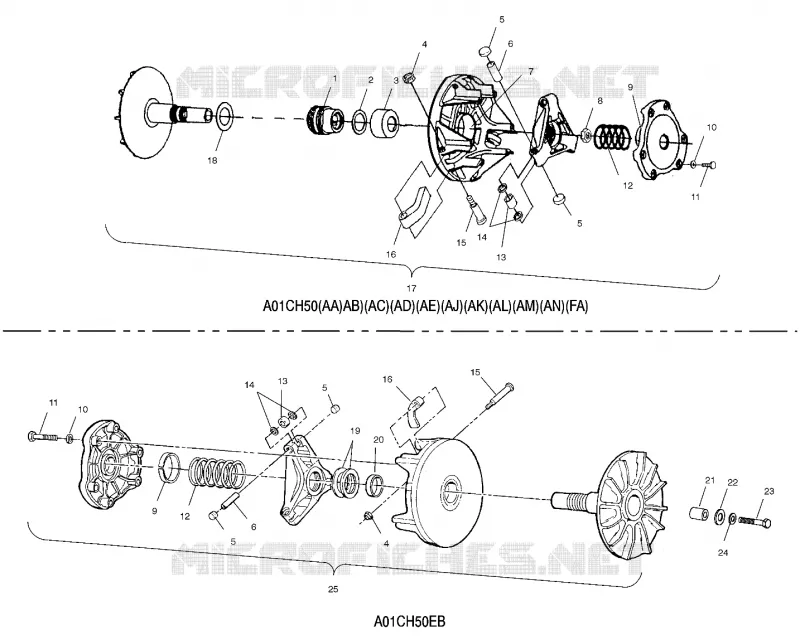

Find the detailed DRIVE CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
