Engine displacement
500
2
Year
2002
3
Trim
SPORTSMAN 500 ALL OPTIONS - A02CH50
4
Parts Catalog
DECALS
5
Parts Diagram
Parts Catalog
OIL TANK (IF BUILT AFTER 1/02/02)
by
DECALS
DECALS
1
2
2
3
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
1
DECAL-RR.FENDER UPPER RH
7179927
9999999
Not Available
2
DECAL-WARN FR & RR RACK
7170021
9999999
Not Available
3
Decal Side Panel RH
7170558
Not Available
3
Decal Side Panel LH
7170557
Not Available
4
Urocal #4X4 On Demand True 4WD#
7079774
Not Available
5
Decal Age Warning ATV
7078253
Not Available
6
DECAL-WARNING AWD SWITCHWHITE
7079780
7175485
Not Available
7
Decal Headlight Adjustment
7078003
Not Available
8
Decal 43 RH
7170584
Not Available
8
Decal 43 LH
7170561
Not Available
9
Decal P.S.E. Tank Side LH
7170555
Not Available
9
Decal P.S.E. Tank Side RH
7170556
Not Available
10
POLARIS STAR LOGO
7078465
$23,09 Unit Price incl. VAT
11
DECAL-POLARIS FRONT COVER
7079773
9999999
Not Available
12
Decal #Liquid Cooled# Radiator
7078045
Not Available
13
DECAL-RR.FENDER UPPER LH
7179926
9999999
Not Available
14
DECAL DRAIN RECOIL
7078577
9999999
Not Available
15
Logo Seq. Petty Special Edition
7170554
Not Available
16
Decal Ignition
7079520
Not Available
17
DECAL-WARN OVERRIDE AWD
7079604
9999999
Not Available
18
Urocal #SPORTSMAN# (AA)(AB)(CA)(CB)
7079776
Not Available
19
Decal #500 HO# Side Panel LH
7170559
Not Available
19
Decal #500 HO# Side Panel RH
7170560
Not Available
20
DECAL-IRSREAR
7079977
9999999
Not Available
21
DECAL POLARIS REAR WHT
7079959
9999999
Not Available
22
Decal Passenger Warning
7077920
Not Available
23
DECAL-TIRE PRESS/LOAD 5/5 1200
7079084
Not Available
24
Decal Discretionary Warning
7079085
Not Available
25
Decal Warning General CPSC
7079083
Not Available

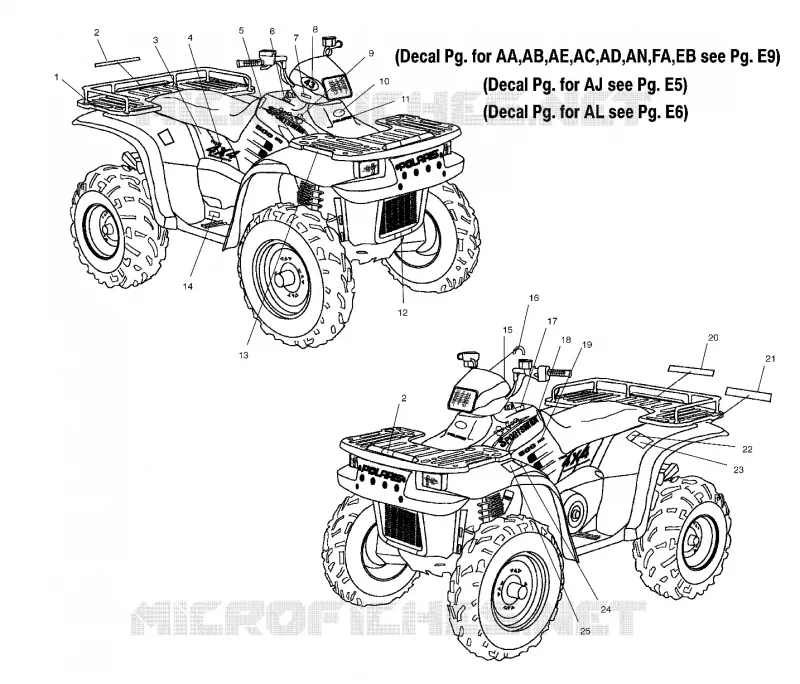

Find the detailed DECALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
