1
Engine displacement
800
2
Year
2014
3
Trim
SPORTSMAN 800 EFI 6X6 FOREST - A14CF76FA
4
Parts Catalog
SWITCHES AND SENSORS AND ECM
5
Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
COOLING SYSTEM THERMOSTAT
SWITCHES AND SENSORS AND ECM
1
2
2
3
4
5
6
7
8
8
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
19
13
21
1
REGULATOR
4012748
$398,99 Unit Price incl. VAT
2
SPACER-.26X.50X.31
7556318
$5,24 Unit Price incl. VAT
2
ECU; NO START
4011599
$965,99 Unit Price incl. VAT
3
SCREW-10-24X2 TX/PH TAP-R
7518486
$6,29 Unit Price incl. VAT
4
CLAMP 1 IN HOSE
7080585
$7,34 Unit Price incl. VAT
5
HEX FLANGE SCREW; 6 MM X 1.0 MM X 20 MM
7519224
$7,34 Unit Price incl. VAT
6
STOPLIGHT SWITCH
4110164
2890637
$325,49 Unit Price incl. VAT
7
KEY SWITCH KEY COVER
5433534
5465307
$26,24 Unit Price incl. VAT
8
3 POSITION KEY SWITCH
4012165
4083589
$202,64 Unit Price incl. VAT
8
BLANK KEY; 22/23/27/28
4010321
4083604
$27,29 Unit Price incl. VAT
8
BLANK KEY; 20/21/67/68
4010278
4083605
$27,29 Unit Price incl. VAT
9
IGNITION SWITCH NUT
5433733
9999999
Not Available
10
HALL SENSOR CAP
5132382
9999999
Not Available
11
HALL EFFECT SENSOR; 32 IN
4011640
9999999
Not Available
12
THEMISTER SENSOR
4010644
$141,74 Unit Price incl. VAT
13
SCREW
7517658
$10,49 Unit Price incl. VAT
14
SWITCH-PRESSURE BRAKE W/CON
4010758
$120,74 Unit Price incl. VAT
15
SCREW
7515179
$4,19 Unit Price incl. VAT
16
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
17
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
18
CRANK POSITION SENSOR
2410720
$220,49 Unit Price incl. VAT
19
SENSOR-THROTTLE POSITION KEIHN
2410342
1204715
$195,08 Unit Price incl. VAT
19
O-RING 10.5 MM X 1 MM
5413812
$3,66 Unit Price incl. VAT
20
SCREW
7517658
$10,49 Unit Price incl. VAT
21
SENSOR-T MAP
2410422
2411528
$178,49 Unit Price incl. VAT

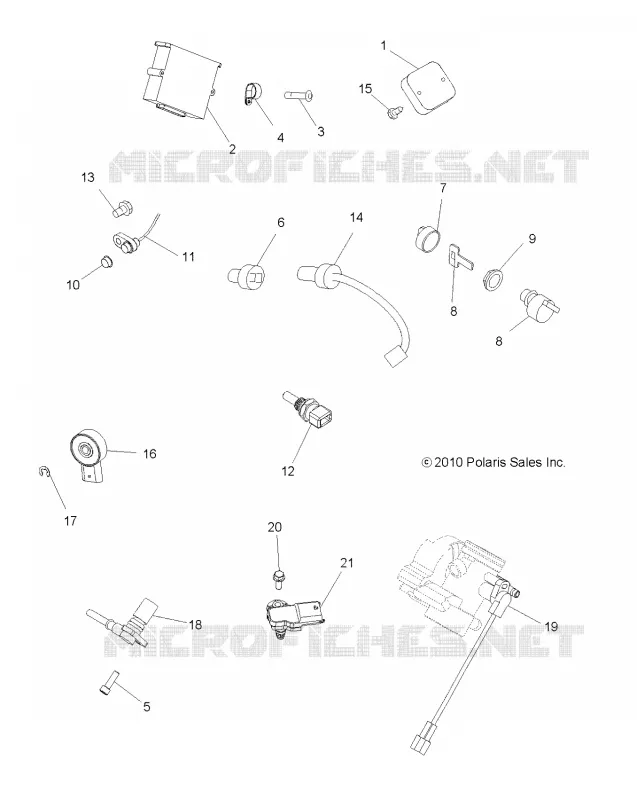

Find the detailed SWITCHES AND SENSORS AND ECM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
