OIL PUMP AND WATER PUMP for POLARIS SPORTSMAN 800 EFI 6X6 FOREST - A14CF76FA from 2014

OIL PUMP AND WATER PUMP

-

OIL PUMP ATV KIT

2203012

$356,99 Unit Price incl. VAT

1

GEROTOR ASSEMBLY; 8.5 MM

1204577

$120,74 Unit Price incl. VAT

2

HOUSING-OIL PUMP 8.5 VLM

5135094

2203012

$356,99 Unit Price incl. VAT

3

BALL BEARING; 15 X 35 X 11

3514561

$16,79 Unit Price incl. VAT

4

RING-RETAINING 1.281X.130

7710531

$9,44 Unit Price incl. VAT

5

OIL AND WATER PUMP SHAFT

5135650

$141,74 Unit Price incl. VAT

6

SCR-M6X1.0X70MM SOC/CAP-Y/D

7517807

$9,44 Unit Price incl. VAT

7

DOUBLE BEAD GASKET COVER

5812936

$68,24 Unit Price incl. VAT

8

WATER PUMP IMPELLER

5433684

$57,74 Unit Price incl. VAT

9

SCR-HXFL-M6X1.0X45 8.8 ZY3D204

7519209

$7,34 Unit Price incl. VAT

10

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

11

WATERPUMP FACE SEAL; 15 X 36/ 40 X 20

3610075

$131,24 Unit Price incl. VAT

12

COVER SEAL; WATERPUMP

5812571

$14,69 Unit Price incl. VAT

13

WATERPUMP COVER; DIE CAST

5632604

$104,99 Unit Price incl. VAT

14

HEX FLANGE SCREW; 6 MM X 1.0 MM X 20 MM

7519224

$7,34 Unit Price incl. VAT

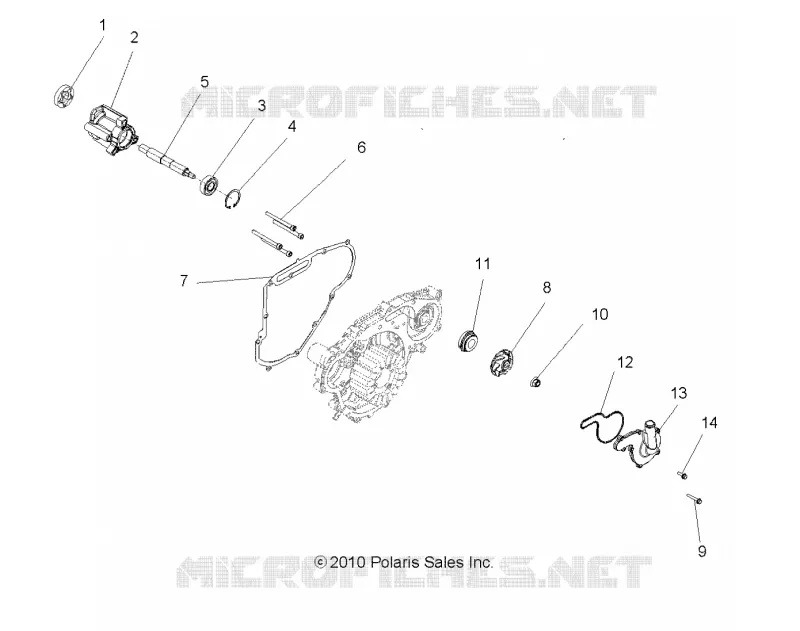

Find the detailed OIL PUMP AND WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
