1
Engine displacement
1000
2
Year
2018
3
Trim
GENERAL 1000 4 SEAT EPS
4
Parts Catalog
DOORS, FRONT
5
Parts Diagram
Parts Catalog
DOORS MOUNTING, FRONT
by
DOORS, REAR
DOORS, FRONT
1
1
2
2
3
3
3
3
28
5
6
6
36
8
8
8
8
9
10
10
11
12
13
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
27
28
29
30
31
32
33
3
35
36
37
38
1
DOOR PANEL; OUTER; FRONT; LEFT
5454342669
Not Available
1
FRT OUTER DOOR PANEL LFT SIDE BLK PEARL
5454342666
Not Available
2
DOOR PANEL; OUTER; FRONT; RIGHT
5454343669
Not Available
2
OUTER DOOR PANEL FRT RHT SIDE BLK PEARL
5454343666
Not Available
3
DOOR HANDLE ASSEMBLY; RIGHT
7082354
$62,99 Unit Price incl. VAT
3
DOOR HANDLE ASSEMBLY; LEFT; ALUMINUM
7082353
$62,99 Unit Price incl. VAT
4
SCREW
7512026
$2,09 Unit Price incl. VAT
5
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
6
DOOR FRAME RIGHT
5634006
5639587
$273,30 Unit Price incl. VAT
6
DOOR FRAME CAST LEFT
5634005
5639586
$273,30 Unit Price incl. VAT
7
SCR-TXTH-M6X1.0X20 T40 ZPB
7519112
$6,29 Unit Price incl. VAT
8
BRKT-DOOR HDL;LATCH;MNT;RH;BLK
5264584458
Not Available
8
BRKT-DOOR HDL;LATCH;MNT;LH;BLK
5264583458
Not Available
9
DOOR CABLE; FRONT
7082357
7083079
$204,74 Unit Price incl. VAT
10
ASM-LATCH RTRY 2 STAGE RR LH
7082333
7082459
$99,74 Unit Price incl. VAT
10
ASM-LATCH RTRY 2 STAGE RR RH
7082334
7082460
$99,74 Unit Price incl. VAT
11
HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK
7518533
$2,09 Unit Price incl. VAT
12
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
13
ASM-WELD DUAL CBL RET RH ECOAT
1023917329
Not Available
13
ASM-WELD DUAL CBL RET LH ECOAT
1023916329
Not Available
14
DOOR HANDLE ASSEMBLY; INNER
7082216
$83,99 Unit Price incl. VAT
15
DOOR PANEL INNER FRONT LEFT GLOSS BLACK
5454346070
Not Available
16
DOOR PANEL INNER FRONT RIGHT GLOSS BLACK
5454347070
Not Available
17
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
18
DOOR HINGE MOUNT COVER; GLOSS BLACK
5452517070
Not Available
19
CAST DOOR HINGE; BLACK
5633642329
Not Available
20
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
21
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
22
DOOR SEAL; FRONT
5454527
$104,99 Unit Price incl. VAT
22
BOLT-M6X1.0X20 HXFLG OLIVE D
7518613
$7,34 Unit Price incl. VAT
23
BRKT-CBL RET;90 DEG;ECOAT
5265518329
Not Available
24
BOLT-M6X1.0X15 PH/TX-OLIVE D
7518656
$7,34 Unit Price incl. VAT
25
DOOR CLAMP BRACKET; BLACK
5262743329
Not Available
26
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
27
SEAL-DOOR FRT
5455581
5455610
$104,99 Unit Price incl. VAT
27
SCREW
7519297
$7,34 Unit Price incl. VAT
28
SCREW
7512026
$2,09 Unit Price incl. VAT
29
GUIDE DOOR LATCH
5454783
9999999
Not Available
30
DOOR TRIM; INNER; LEFT; GLOSS BLACK
5452290070
Not Available
31
DOOR TRIM; INNER; RIGHT; GLOSS BLACK
5452291070
Not Available
32
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
33
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
34
DOOR HANDLE ASSEMBLY; LEFT; ALUMINUM
7082353
$62,99 Unit Price incl. VAT
35
CLIP-REAR DOOR ROD
5454637
$7,34 Unit Price incl. VAT
36
SCR-TXTH-M6X1.0X20 T40 ZPB
7519112
$6,29 Unit Price incl. VAT
37
GRAB HANDLE DOOR; RIGHT BLACK
5452904070
Not Available
38
SCR-SH-M6X1.0X50 8.8 RIE
7520482
$7,34 Unit Price incl. VAT

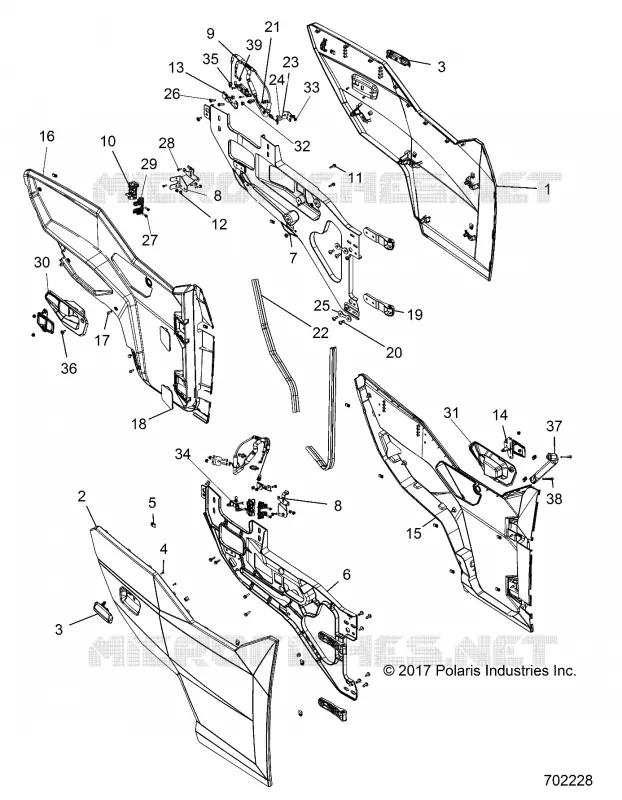

Find the detailed DOORS, FRONT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
