1
Engine displacement
1000
2
Year
2018
3
Trim
GENERAL 1000 4 SEAT EPS
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES
by
DRIVE TRAIN, FRONT GEARCASE
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
2
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
3
BELT SCREEN BRACKET
5256732
$20,99 Unit Price incl. VAT
4
INNER CLUTCH COVER ASSEMBLY
2635158
$314,99 Unit Price incl. VAT
5
CLUTCH COVER GUARD BRACKET
5256223
$68,24 Unit Price incl. VAT
6
AIR INLET CLUTCH DUCT
5439086
$73,49 Unit Price incl. VAT
7
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
8
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
9
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
10
CLUTCH COVER KIT
2207414
$351,74 Unit Price incl. VAT
11
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
12
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
13
COVER SEAL
5813708
$41,99 Unit Price incl. VAT
14
3.75 SS
7080907
$20,99 Unit Price incl. VAT
15
DECAL-BELT CAUTION/CHECK
7177469
Not Available
16
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
17
CLAMP-FUEL FILTER
7081129
9999999
Not Available
18
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
19
CLAMP-HOSE SLOTTED;89-100 DIA
7081969
$19,94 Unit Price incl. VAT
20
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
21
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
22
CLUTCH HOSE; AIR OUTLET
5451061
$209,99 Unit Price incl. VAT
23
CLUTCH HOSE; INLET
5415467
$115,49 Unit Price incl. VAT
24
HOSE-INTAKE DUCT
5415468
$89,24 Unit Price incl. VAT
25
HOSE-CLUTCH SCNDRY INTK RBR
5416058
$178,49 Unit Price incl. VAT
26
HOSE-INTAKE DUCT
5415811
$62,99 Unit Price incl. VAT
27
INNER CLUTCH COVER; GLOSS BLACK
5454487070
Not Available
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
AIR OUTLET CLUTCH DUCT
5450846
$83,99 Unit Price incl. VAT

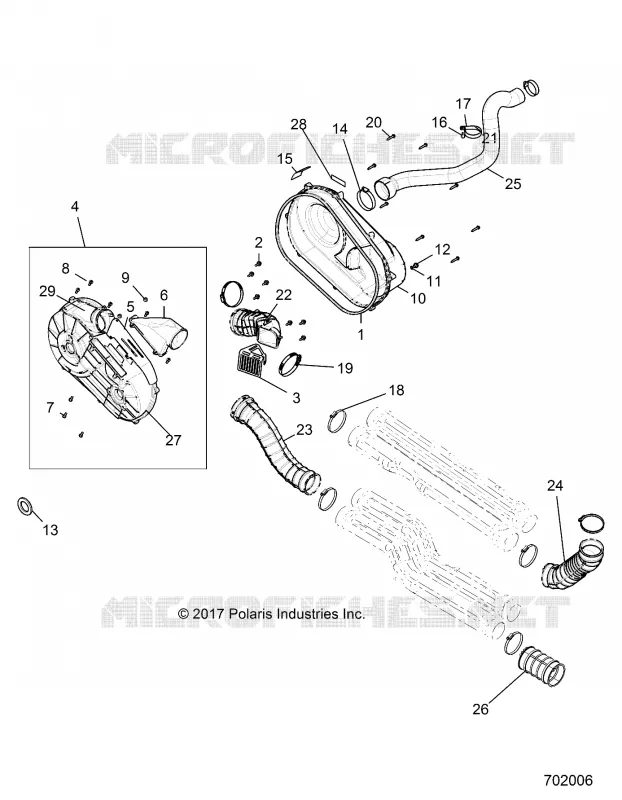

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
