1
Engine displacement
850
2
Year
2020
3
Trim
850 AXYS PRO RMK 174 3"
4
Parts Catalog
SUSPENSION, FRONT SHOCK TRACK (BLACK COIL OVER)
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
by
STEERING, SKI ASM.
SUSPENSION, FRONT SHOCK TRACK (BLACK COIL OVER)
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
-
FRONT TRACK SHOCK
7045030
$892,49 Unit Price incl. VAT
1
BODY FT 6.81 BLK 1500153
1800723
9999999
Not Available
2
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
3
NEEDLE VALVE
1800329
$62,99 Unit Price incl. VAT
4
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
5
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
6
ADJUSTER SPRING 1500131
1800724
$68,24 Unit Price incl. VAT
7
SPRING RETAINING RING
1800116
$120,74 Unit Price incl. VAT
8
ASM-SEAL HD SHORT (110157-AC)
1800950
$141,74 Unit Price incl. VAT
9
SHAFT .50 X 5.935L
1800725
$173,24 Unit Price incl. VAT
10
SHAFT LOOP
1800408
9999999
Not Available
11
BUSHING
1800406
$9,44 Unit Price incl. VAT
12
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
13
SPRG-CMP.280X8.76 150# SLS MB
7044830458
Not Available
14
JAM NUT
1800465
$99,74 Unit Price incl. VAT
15
THIN WEAR BAND
1800543
$73,49 Unit Price incl. VAT
16
PISTON-RES IFP THIN(1600054-0)
1800952
$62,99 Unit Price incl. VAT
17
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
18
PISTON CONVEX THIN (1100126)
1800542
$246,74 Unit Price incl. VAT
19
O-RING RESERVOIR
1800028
$3,14 Unit Price incl. VAT
20
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
21
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
22
FLG BRNG 1 X.875ID (1700035)
1800951
$47,24 Unit Price incl. VAT

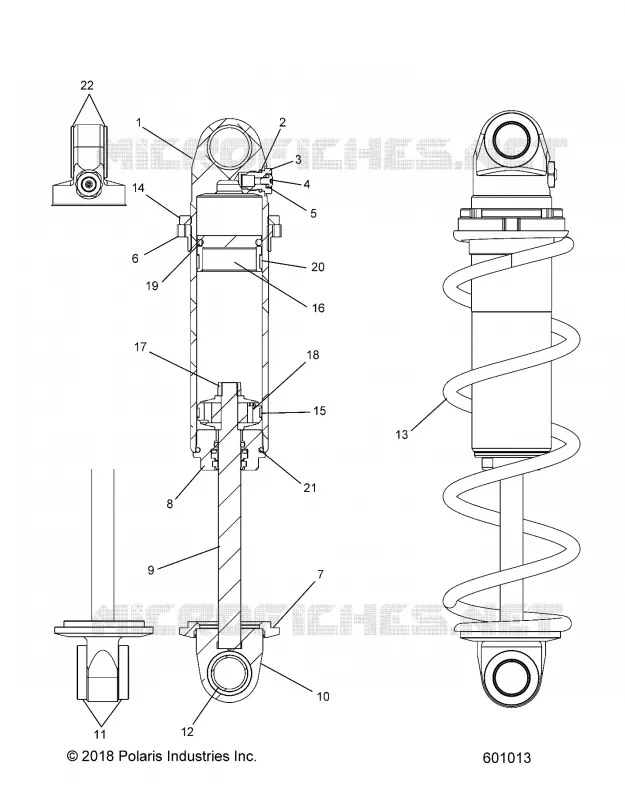

Find the detailed SUSPENSION, FRONT SHOCK TRACK (BLACK COIL OVER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
