1
Engine displacement
850
2
Year
2020
3
Trim
850 AXYS PRO RMK 174 3"
4
Parts Catalog
STEERING, HANDLEBAR MOUNTING
5
Parts Diagram
Parts Catalog
BUMPER, REAR, SNOWFLAP AND TAILLIGHT COVER
by
ENGINE, EXHAUST VALVE ASM.
STEERING, HANDLEBAR MOUNTING
1
1
1
2
3
4
5
6
7
8
9
10
10
11
12
12
12
12
13
13
14
1
PROTAPER LOW RISE HANDLEBAR ASSEMBLY
1824599
1830284
$367,49 Unit Price incl. VAT
1
HANDLEBAR; HI RISE
1824601
1830285
$367,49 Unit Price incl. VAT
1
MID RISE HANDLEBAR ASSEMBLY
1824600
1830244
$367,49 Unit Price incl. VAT
2
HANDLEBAR HOOK; GLOSS BLACK
1823339070
Not Available
3
SCREW
7515138
$10,49 Unit Price incl. VAT
4
HB GRIP PRO RMK/SB ASSAULT GLOSS BLACK
5452148070
Not Available
5
SOCKET HEAD SCREW; 6 MM X 45 MM
7518931
$4,19 Unit Price incl. VAT
6
HANDLEBAR MOUNT BLOCK
5631729
$62,99 Unit Price incl. VAT
7
HANDLEBAR BLOCK
5631892
$62,99 Unit Price incl. VAT
8
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
9
STEERING POST WELD; UPPER; BLACK
1824648329
Not Available
10
HEX FLANGE SCREW; 8 MM X 1.25 MM X 55 MM
7519242
$9,44 Unit Price incl. VAT
11
STEERING STRAP
5261531
$10,49 Unit Price incl. VAT
12
STEERING POST BUSHING
5451227
$7,34 Unit Price incl. VAT
13
BRUSHING SPACER
5137796
$7,34 Unit Price incl. VAT
14
STEERING STRAP
5258308
$6,29 Unit Price incl. VAT

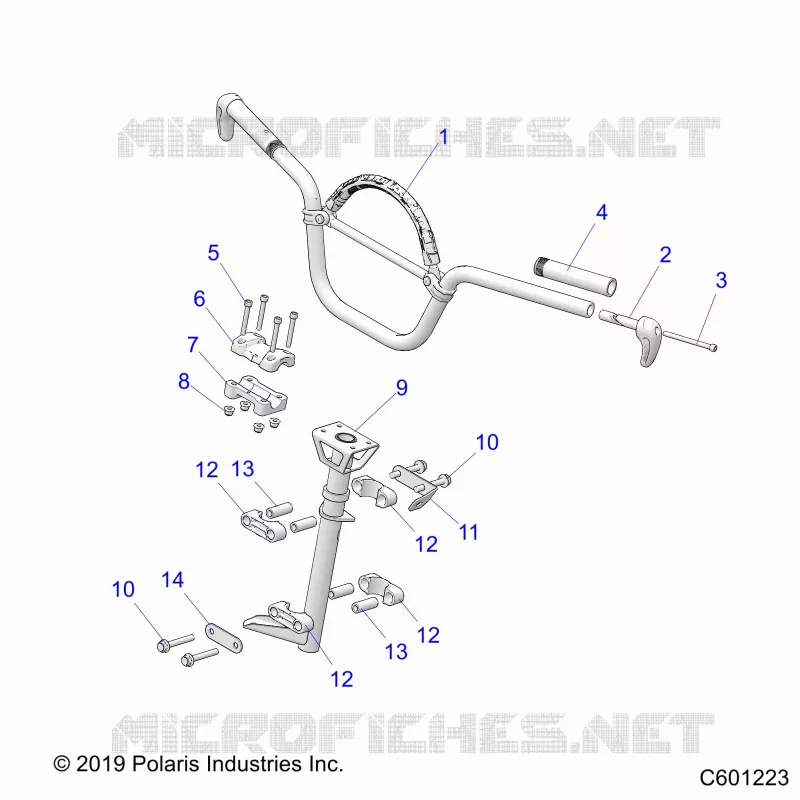

Find the detailed STEERING, HANDLEBAR MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
