Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT
DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
4
5
6
7
8
9
10
11
12
1
2
3
3
4
4
1
SHIFT KNOB COVER
5412003
$23,09 Unit Price incl. VAT
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
KNOB-GEAR SELECTOR SHIFT
5411007
9999999
Not Available
4
SNAP LINKAGE BUSHING; NYLATRON
5436722
$7,34 Unit Price incl. VAT
5
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
6
ROD-SHIFTER SINGLES
5335437
9999999
Not Available
7
SHIFT HANDLE WELD; MEDIUM GLOSS BLACK
1015598067
Not Available
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
BOLT-5/16-18X1-1/2 HXFLNG GR5
7518342
$6,29 Unit Price incl. VAT
10
GEAR SELECTOR MOUNT
5435042
$12,59 Unit Price incl. VAT
11
GROMMET-ELEC SHOCK WIRE;SLIT
5413317
$5,24 Unit Price incl. VAT
12
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

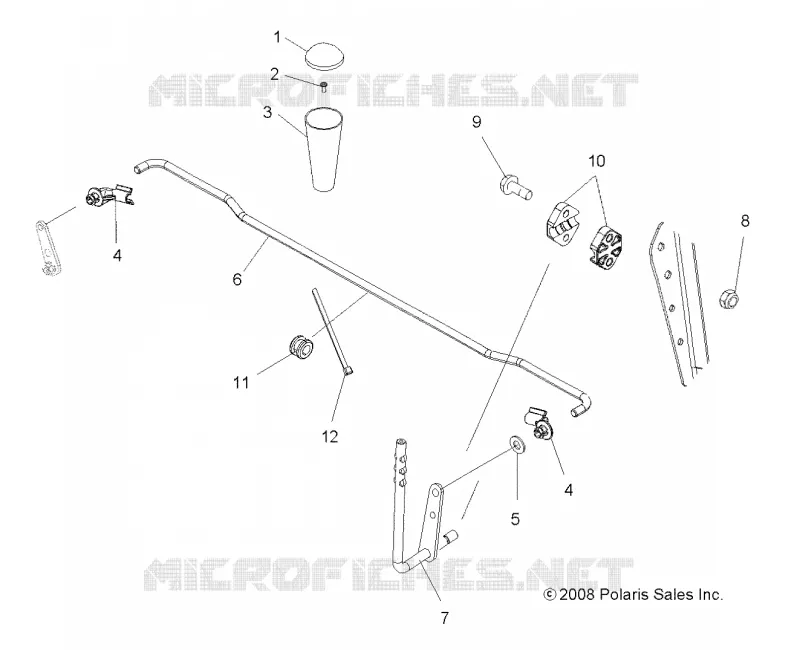

Find the detailed DRIVE TRAIN, GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
