Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog
DECALS
5
Parts Diagram
Parts Catalog
by
FRONT BUMPER AND MOUNTING
DECALS
1
1
2
2
3
3
3
3
4
5
6
6
6
6
7
7
8
9
9
9
9
10
11
12
13
1
2
2
3
4
5
6
7
8
9
1
DECAL-REFLECTOR RED
7172689
9999999
Not Available
2
DECAL-WARN FR&RR RACK
7172572
Not Available
3
DECAL-RR.CAB AWD RH
7174986
9999999
Not Available
3
DECAL-RR.CAB AWD LH
7174985
9999999
Not Available
4
DECAL-WARN TIRE/LOAD 5 5 485
7175642
Not Available
5
DECAL-WARN NO PASSENGER
7175378
Not Available
6
DECAL-REFLECTOR AMBER LH
7175490
9999999
Not Available
6
DECAL-REFLECTOR AMBER RH
7175491
9999999
Not Available
7
DECAL-POD; EFI
7174263
9999999
Not Available
8
POLARIS STAR LOGO
7078465
$23,09 Unit Price incl. VAT
9
DECAL-TANK SIDE500LH
7174906
9999999
Not Available
9
"500" TANK DECAL RIGHT
7174907
9999999
Not Available
10
DECAL-WARN AGE Y16+
7175374
7175566
Not Available
11
DECAL-WARN OVERRIDE/4X4 SWITCH
7175512
Not Available
12
DECAL-WARN GENERAL/DISC
7175553
9999999
Not Available
13
DECAL-HITCH 1225 LBS.
7170911
9999999
Not Available

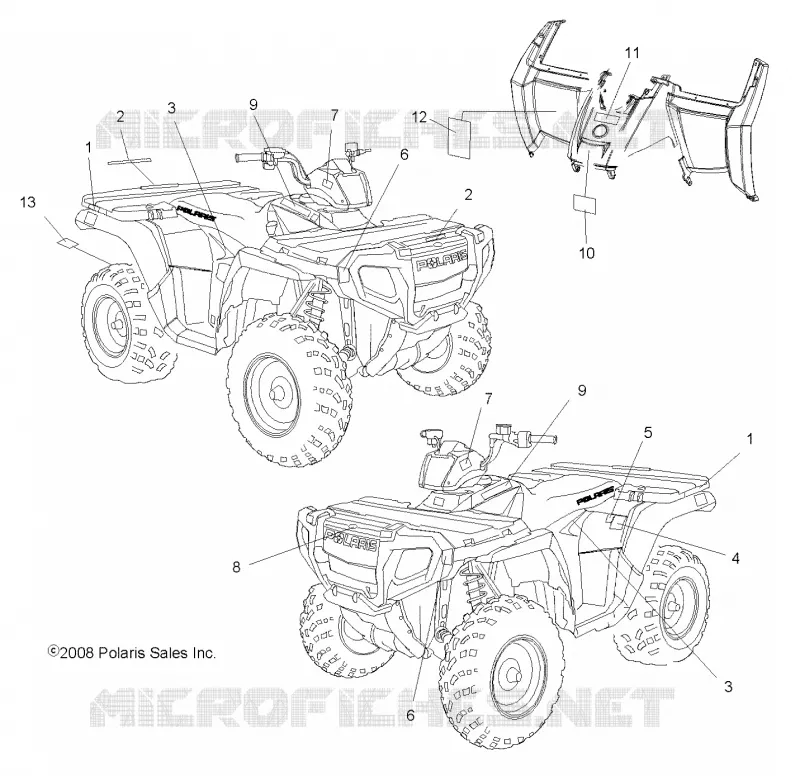

Find the detailed DECALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
