BLOWER HOUSING RECOIL LITE 0983433 AND LITE DELUXE 0983431 (4941864186C006)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT LITE 0983433 AND LITE DELUXE 0983431 (4941864186C005)
by
CARBURETOR LITE 0983433 AND LITE DELUXE 0983431 (4941864186C007)
BLOWER HOUSING RECOIL LITE 0983433 AND LITE DELUXE 0983431 (4941864186C006)
1
BOLT&WASHER ASM(10)
3083715
9999999
Not Available
2
NUT(10)
3084375
9999999
Not Available
3
WASHER SPRING(10)
3080077
9999999
Not Available
4
ASM. CYLINDER BAFFLE NO. 1
3084420
9999999
Not Available
5
ASM. BAFFLE#2 CYL.
3084421
9999999
Not Available
6
GASKET INTAKE
3084024
9999999
Not Available
7
ASM. CYLINDER-BAFFLE 3
3084423
9999999
Not Available
8
ASM. BOLT & WASHER
3081663
9999999
Not Available
9
ASM. CASE STARTER
3083589
9999999
Not Available
9
RECOIL STARTER
3083588
9999999
Not Available
10
CLAMP
3083590
9999999
Not Available
11
ASM. BOLT&WASHER
3083729
9999999
Not Available
12
ROPE GUIDE
3083107
3040171
$6,08 Unit Price incl. VAT
13
HOUSING BLOWER#2
3083591
9999999
Not Available
14
SPIRAL SPRING
3083376
3023393
$278,24 Unit Price incl. VAT
15
ASM. BOLT AND WASHER(10)
3081665
9999999
Not Available
16
PULLEY-STARTING
3083108
9999999
Not Available
17
100 FT. NYLON STARTER ROPE
2870621
$47,24 Unit Price incl. VAT
18
REEL ASSEMBLY
3083377
$104,99 Unit Price incl. VAT
19
RETURN SPRING
3083463
9999999
Not Available
20
RATCHET
3083378
9999999
Not Available
21
FRICTION SPRING
3083379
9999999
Not Available
22
FRICTION PLATE
3083464
9999999
Not Available
23
NUT FLANGE(10)
3083381
9999999
Not Available

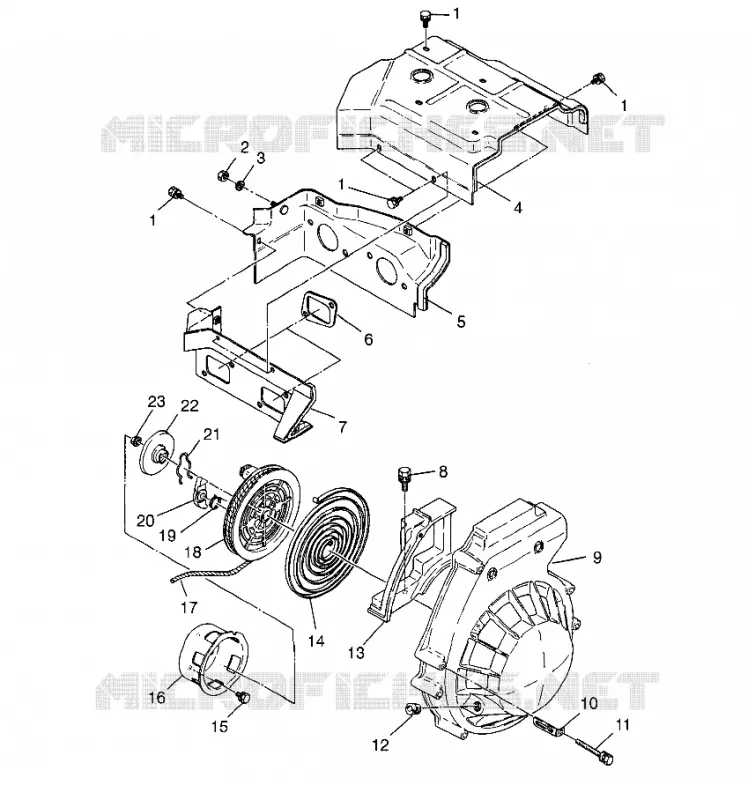

Find the detailed BLOWER HOUSING RECOIL LITE 0983433 AND LITE DELUXE 0983431 (4941864186C006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
