1
Engine displacement
500
2
Year
2002
3
Trim
SPORTSMAN 6X6 - A02CL50AA
4
Parts Catalog
FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
CABIN
by
DECALS
FRONT RACK BUMPER MOUNTING
1
SCREW
7517685
$3,14 Unit Price incl. VAT
2
ASM-RACK FRONT 6X6 BLK
2632340070
Not Available
3
DECAL-REFLECT.6.75 AMBER
7079926
9999999
Not Available
4
SCREW
7515399
9999999
Not Available
5
KIT FRT.RACK MOUNT
2200775
9999999
Not Available
6
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
7
WASHER
7555954
$9,44 Unit Price incl. VAT
8
FRONT BUMPER; GEN IV; GLOSS BLACK
5432155070
Not Available
9
BOLT(10)
7515391
$9,44 Unit Price incl. VAT
10
BOLT
7515390
9999999
Not Available
11
SUPPORT RACK WELD; FRONT; LEFT; GS BLK
1013744067
Not Available
11
SUPPORT RACK WELD; FRONT; RIGHT; GS BLK
1013746067
Not Available
12
BOLT
7512232
$2,09 Unit Price incl. VAT
13
BOLT
7512329
$7,34 Unit Price incl. VAT
14
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
15
PLUG; FRAME
5810467
9999999
Not Available
16
FRAME EXTENSION RIGHT GS BLK
5244730067
Not Available
16
FRAME EXTENSION LEFT GS BLK
5244729067
Not Available
17
WELD-BRUSH GUARD;BLK
1013772067
Not Available
17
GUARD-BRUSH BLK
5244731067
Not Available
18
GRILL BRUSHGUARD BLK.
5240591067
Not Available
19
POP RIVET
7621330
$2,09 Unit Price incl. VAT
20
NUT
7670094
$10,49 Unit Price incl. VAT
21
SCREW(10)
7512097
9999999
Not Available
22
SHIELD-RADIATOR SIDE RH
5433924
9999999
Not Available
22
RADIATOR SHIELD; LEFT
5433923
9999999
Not Available
23
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
24
ASM. HEADLIGHT SIDE MOUNT LH
2431014
9999999
Not Available
24
SIDE MOUNT HEADLIGHT ASM RIGHT 35 WATT
2431015
9999999
Not Available
24
BULB H/L 27W.HOBBS
4030059
9999999
Not Available

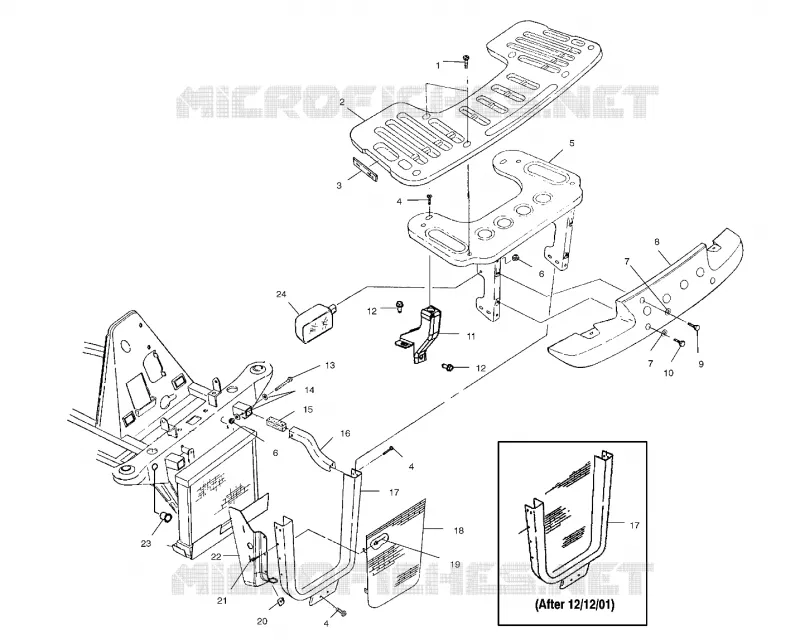

Find the detailed FRONT RACK BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
