1
Engine displacement
500
2
Year
2002
3
Trim
SPORTSMAN 6X6 - A02CL50AA
4
Parts Catalog
AIR BOX
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
DUMP BOX
AIR BOX
1
SCREW TAPPING
7527815
9999999
Not Available
2
PAD
5810455
$6,29 Unit Price incl. VAT
3
DUCT INLET
5433395
9999999
Not Available
4
INTAKE GASKET
5411422
$10,49 Unit Price incl. VAT
5
AIRBOX COVER
5432868
9999999
Not Available
6
SEAL COVER
5811482
5813949
$52,49 Unit Price incl. VAT
7
SCREW
7515179
$4,19 Unit Price incl. VAT
8
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
9
LINE BREATHER 3/8 ID.
8450073600
Not Available
10
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
11
BREATHER FILTER IN LINE
2530029
9999999
Not Available
12
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
13
BREATHER HOSE; NITRILE
5411921
9999999
Not Available
14
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
15
BOOT CARBURETOR
5411540
9999999
Not Available
16
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
17
DUCT CARBURETOR INLET
5432473
9999999
Not Available
18
CARBURETOR INLUET DUCT GASKET
5830128
9999999
Not Available
19
AIR BOX
5433387
9999999
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
FOIL
5811650
9999999
Not Available
22
PLUG TRAP
5432377
9999999
Not Available
23
FUEL LINE
8450059150
Not Available
24
CLAMP HOSE
7080650
$7,34 Unit Price incl. VAT
25
CLIP
5242044
$17,84 Unit Price incl. VAT
26
COLLAR CARBURETOR INLET
5432601
9999999
Not Available
27
FILTER AIR
7080595
7083107
$51,23 Unit Price incl. VAT
28
PRECLEANER FILTER SLEEVE
5811633
$19,20 Unit Price incl. VAT

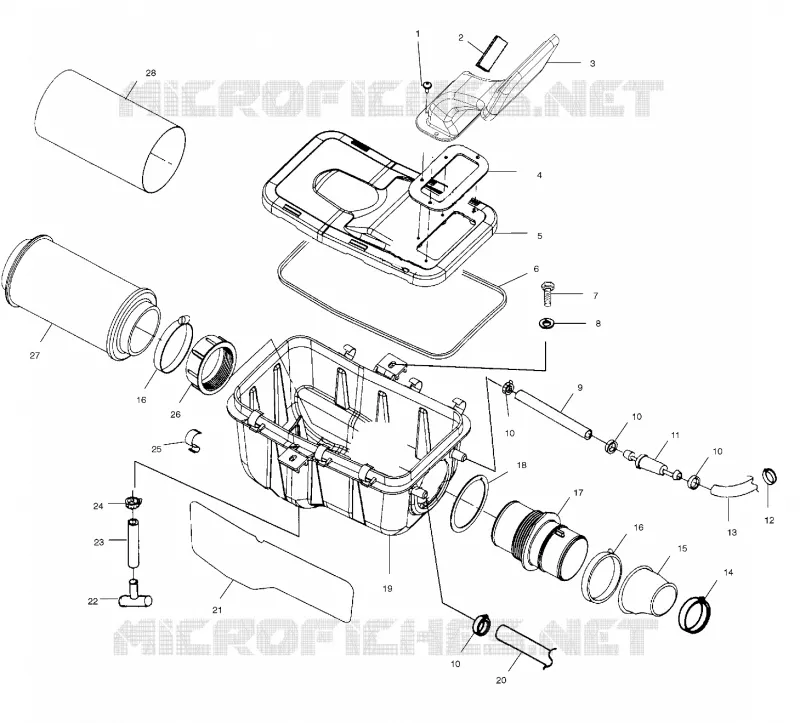

Find the detailed AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
