Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, MAIN GEARCASE MOUNTING
DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
4
5
6
7
8
9
10
11
12
1
2
3
3
4
4
5
6
7
8
9
9
10
10
11
12
1
2
2
3
4
5
5
6
7
7
8
8
9
9
10
10
11
11
12
12
1
SHIFT COVER
5450575
$24,14 Unit Price incl. VAT
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
GEAR SELECTOR SHIFT KNOB
5414569
$26,24 Unit Price incl. VAT
4
SNAP LINKAGE BUSHING; NYLATRON
5436722
$7,34 Unit Price incl. VAT
5
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
6
SHIFTER ROD
5337960
5346903
$83,99 Unit Price incl. VAT
7
WELD-SHIFT HANDLE;M;BLK
1015598458
Not Available
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
BOLT-5/16-18X1-1/2 HXFLNG GR5
7518342
$6,29 Unit Price incl. VAT
10
GEAR SELECTOR MOUNT
5435042
$12,59 Unit Price incl. VAT
11
HOSE-SILICONE 4IN SLIT
5414141
$20,99 Unit Price incl. VAT
12
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

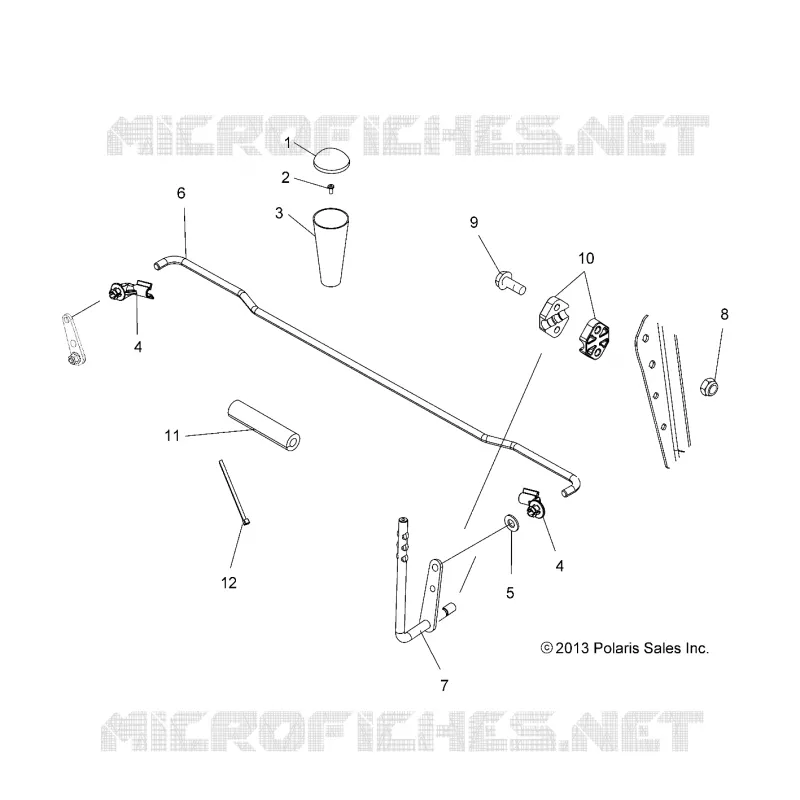

Find the detailed DRIVE TRAIN, GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
