Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN TOURING QUAD 570 EPS
4
Parts Catalog
BODYWORK
5
Parts Diagram
Parts Catalog
HEADLIGHT POD
by
REAR RACK and HAND GRIPS
BODYWORK
1
2
2
3
4
5
6
7
7
8
9
10
10
11
12
1
2
2
3
4
5
6
7
8
9
10
11
12
1
CAB; REAR; SPORTSMAN; BRIGHT WHITE
5450525133
Not Available
2
BOLT
7512232
$2,09 Unit Price incl. VAT
3
FOOTWELL LEFT GLOSS BLACK
5450543070
Not Available
4
FOOTWELL-TOUR RH BLK
5450544070
Not Available
5
SCREW
7517230
$2,09 Unit Price incl. VAT
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
8
PASSENGER FOOTWELL; LEFT; BLACK
1019966329
Not Available
9
PASSENGER FOOTWELL; RIGHT; BLACK
1019967329
Not Available
10
TORSION BAR BUSHING
5433369
$20,99 Unit Price incl. VAT
11
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
12
U-TYPE NUT; 1/4-20
7670145
9999999
Not Available

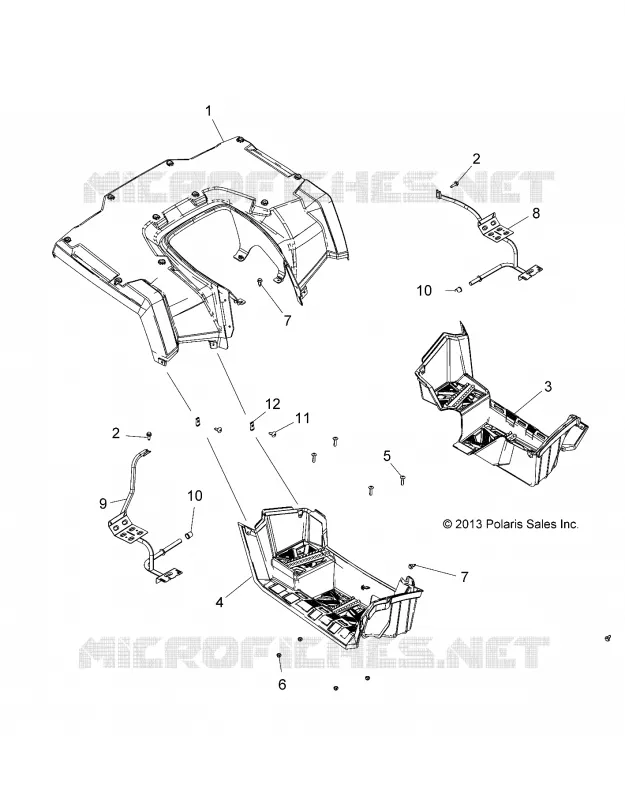

Find the detailed BODYWORK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
