TIMING SYSTEM for POLARIS OUTLAW 450 MXR from 2009

TIMING SYSTEM

1

CAMCHAIN

3222158

9999999

Not Available

2

CAM TIMING CHAIN GUIDE; 525 ATV

3021845

9999999

Not Available

3

CAM CHAIN GUIDE; LOWRE; 525 ATV

3021847

9999999

Not Available

4

SPROCKET-CAM CHAIN DRIVE 18T

3222157

9999999

Not Available

5

CAM CHAIN TENSIONER

1203519

9999999

Not Available

6

CAM CHAIN TENSIONER GASKET

5813173

9999999

Not Available

7

CAM CHAIN TENSIONER ASSEMBLY; 525 ATV

1203522

9999999

Not Available

8

BUSHING-SPACER 6.1X8.2X13.1MM

5135837

9999999

Not Available

9

SCR-M6X20 HX/FL 8MM HEAD

7518723

9999999

Not Available

10

SCR-M5X16 HX/FL 8MM HEAD

7518732

9999999

Not Available

11

BUSHING-SPACER 5.2X7X10X7.7MM

5135843

9999999

Not Available

12

WASHER-COPPER DIN7603 6X10X1MM

7556415

9999999

Not Available

13

SCR-M6X25 HX/FL 8MM HEAD

7518736

9999999

Not Available

14

CAMSHAFT-590/5521 525ATV

3021848

9999999

Not Available

15

SPROCKET-CAMSHAFTDRIVEN 525ATV

3222159

9999999

Not Available

16

AUTODECOMPRESSION SHAFT 525 ATV

3021849

9999999

Not Available

17

SCR-M8X10 SOCHD DIN7984

7518741

9999999

Not Available

18

WASHER-26.7X34X1.3MM

7556414

9999999

Not Available

19

WATERPUMP SEAL CARRIER; 525 ATV

5135846

9999999

Not Available

20

BALL BEARING

3514581

9999999

Not Available

21

SPRING-AUTO DECOM 525ATV

7043303

9999999

Not Available

22

O-RING; 29.1 MM X 1.6 MM; NBR70

5413252

9999999

Not Available

23

O-RING 25.12 MM X 1.78 MM

5413251

9999999

Not Available

24

SHAFT SEAL; 10 X 18 X 4

5413306

9999999

Not Available

25

CAM CHAIN CONNECTOR LINK

3222167

9999999

Not Available

26

NEEDLE-ROLLER DIN5402 3X17.8MM

7661935

9999999

Not Available

27

IMPELLER-WATERPUMP 525ATV

5437029

9999999

Not Available

28

RING-SNAP DIN0471 10X1MM

7710599

9999999

Not Available

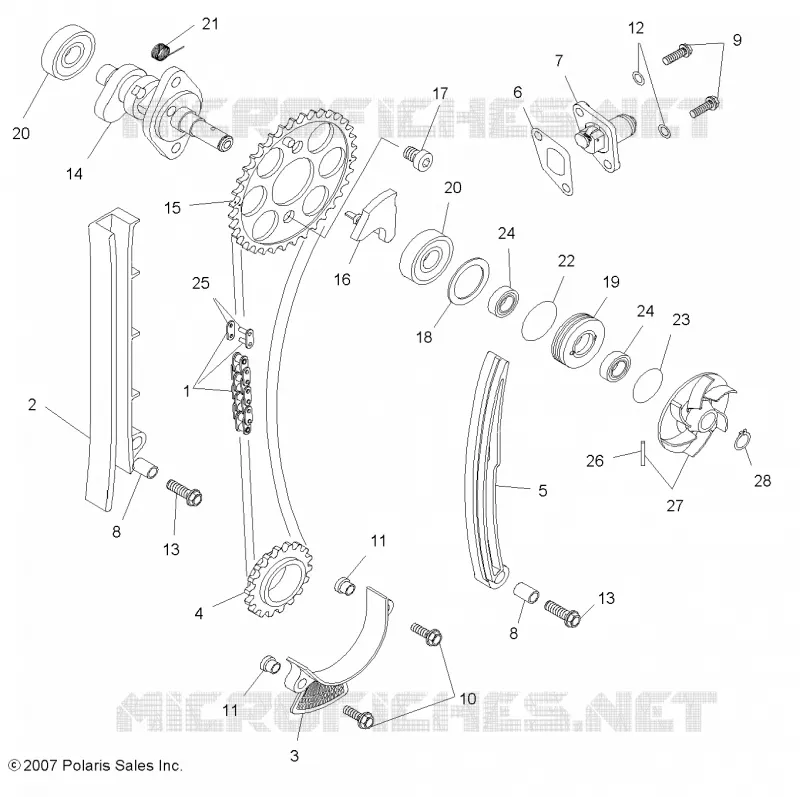

Find the detailed TIMING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
