COOLING SYSTEM for POLARIS OUTLAW 450 MXR from 2009

COOLING SYSTEM

1

ASM-FAN & MOTOR

2520719

9999999

Not Available

2

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

3

HOSE-RADIATOR INLET

5413184

9999999

Not Available

4

THERMAL SENSOR; DUAL TEMP

4011771

9999999

Not Available

5

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

6

PRESSURE CAP; 20 PSI

1240325

9999999

Not Available

7

RADIATOR

1240302

9999999

Not Available

8

SCREEN-RADIATOR

5436136

9999999

Not Available

9

SCR-HXFLTX-M6X1.0X15 8.8 ZOD

7519066

$7,34 Unit Price incl. VAT

10

BRKT-RADIATOR MOUNT;LOWER;M BK

5250821458

Not Available

11

SCREW

7512084

$2,09 Unit Price incl. VAT

12

SPACER

5333796

9999999

Not Available

13

GROMMET

5410437

9999999

Not Available

14

BRKT-SURGE TANK

5249162

9999999

Not Available

15

SURGE TANK

5434856

9999999

Not Available

16

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

17

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

18

GASKET

5810279

$4,19 Unit Price incl. VAT

19

SURGE TANK CAP FOAM

5812988

9999999

Not Available

20

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

21

FUEL LINE; 1/4 ID

84500031525

Not Available

22

HOSE-RADIATOR OUTLET

5413182

9999999

Not Available

23

HEX HEAD BOLT; 6 MM

7517975

9999999

Not Available

24

HOSE CLAMP

7080474

$13,64 Unit Price incl. VAT

25

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

26

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

27

SCR-TORX HD;M4.2X19;0600129

7518590

$6,29 Unit Price incl. VAT

28

THERMOSTAT 70 DEGREES 525 ATV

7052414

9999999

Not Available

29

O-RING-32.0X2.0MM

5413232

9999999

Not Available

30

ASM-THERMOSTAT REMOTE 525ATV

1203449

9999999

Not Available

31

HOSE-BYPASS

5413185

9999999

Not Available

32

ENGINE OUTLET HOSE

5413183

9999999

Not Available

33

BOLT-M6X1.0X8 PH/TX LX-OLIVE D

7518647

$17,84 Unit Price incl. VAT

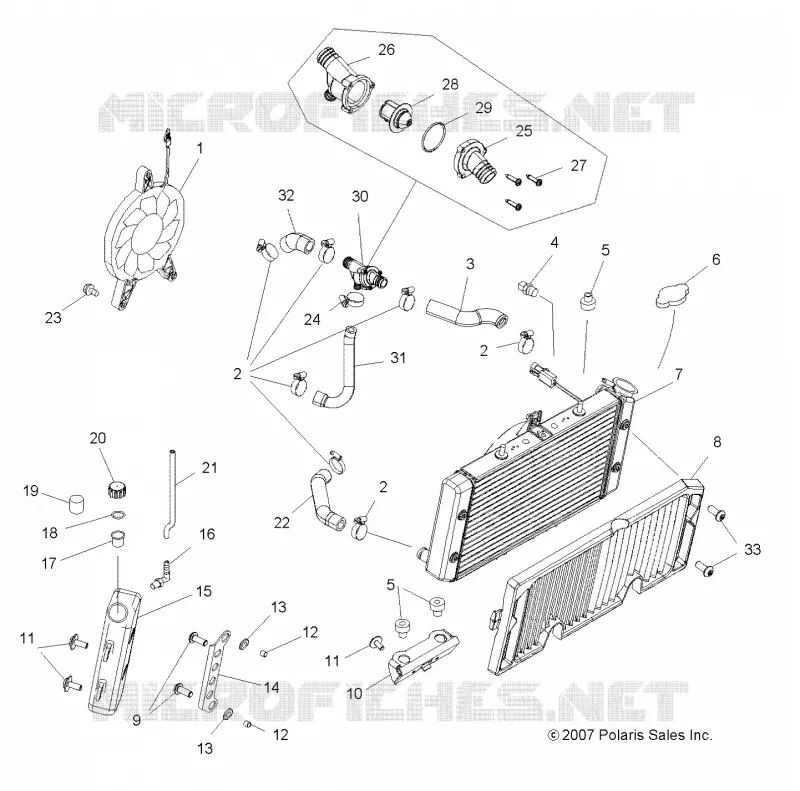

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
