OIL PUMP
5
Parts Diagram
Parts Catalog
CYLINDER AND HEAD
by
OIL PUMP
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
1
CASE #2OILPUMP
3084946
9999999
Not Available
1
OIL PUMP ASSEMBLY
3090032
9999999
Not Available
2
ROTOR; OUTER; FEED
3084949
9999999
Not Available
3
FOOD ROTOR; INNER
3084948
9999999
Not Available
4
OIL PUMP CASE I
3090000
9999999
Not Available
5
PIN DOWEL
3084955
9999999
Not Available
6
SCREW(10)
3085535
9999999
Not Available
7
PIN DOWEL
3084954
9999999
Not Available
8
BOLT-FLANGE
3087159
9999999
Not Available
9
OIL PUMP CASE 3
3087265
9999999
Not Available
10
ROTOR INNER SCAV.
3084950
9999999
Not Available
11
ROTOR OUTER
3084951
9999999
Not Available
12
OIL STRAINER UNIT
3084956
9999999
Not Available
13
SCREW AND WASHER
3084205
9999999
Not Available
14
WASHER(10)
3084953
9999999
Not Available
15
PUMP SHAFT
3085858
9999999
Not Available
16
PUMP GEAR
3090033
9999999
Not Available
17
BOLT-FLANGE
3089505
9999999
Not Available
18
SPACER 0.8
3084959
9999999
Not Available
18
SPACER; 1.0
3084960
9999999
Not Available
18
SPACER 1.2
3084961
9999999
Not Available

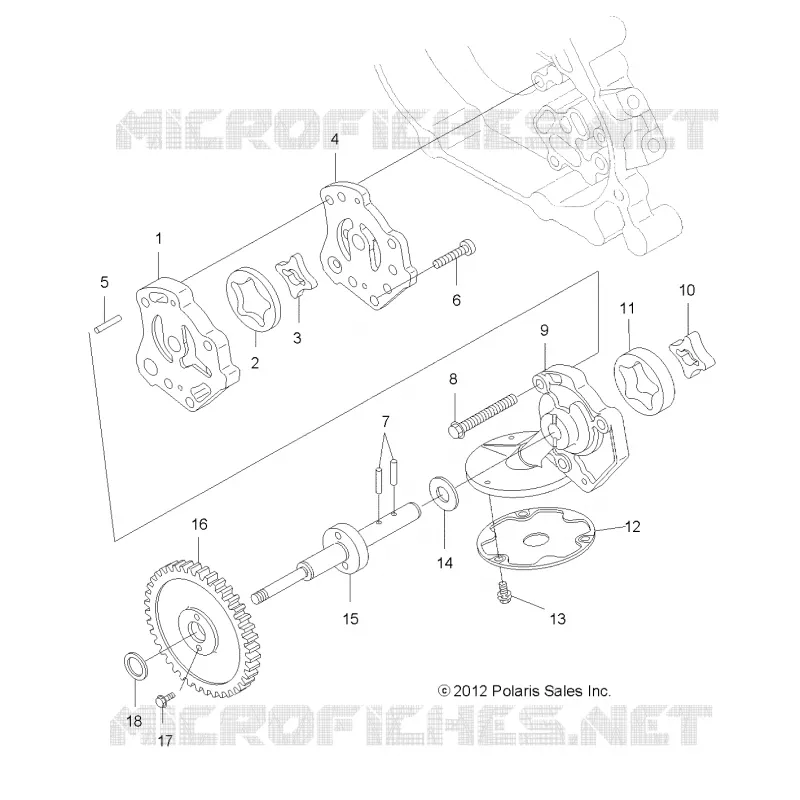

Find the detailed OIL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
