ENGINE, MOUNTING for POLARIS SPORTSMAN FOREST 500 from 2012

ENGINE, MOUNTING

1

CLUTCH INTAKE BOOT

5412487

9999999

Not Available

2

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

3

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

4

FRAME SUPPORT STRAP; MEDIUM GLOSS BLACK

5224658067

Not Available

5

NUT

7547108

$9,44 Unit Price incl. VAT

6

ISOLATOR

3022076

9999999

Not Available

7

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

8

BRKT-TORQUE STOP PLTD

5245043

9999999

Not Available

9

ISOLATOR-3/8-24M/M 60DURO

3022071

3024012

$83,99 Unit Price incl. VAT

10

ENGINE MOUNT; FRONT

5254430

9999999

Not Available

11

BOLT-3/8-24X23/4 HEX FLANGE 65

7518415

9999999

Not Available

12

BRKT-ENGINE MOUNTTOPPLTD

5242674

9999999

Not Available

13

BOLT AND WASHER ASSEMBLY

3082038

9999999

Not Available

14

FRAME/ENGINE CABLE

4010895

9999999

Not Available

15

BOLT

7512315

$9,44 Unit Price incl. VAT

16

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

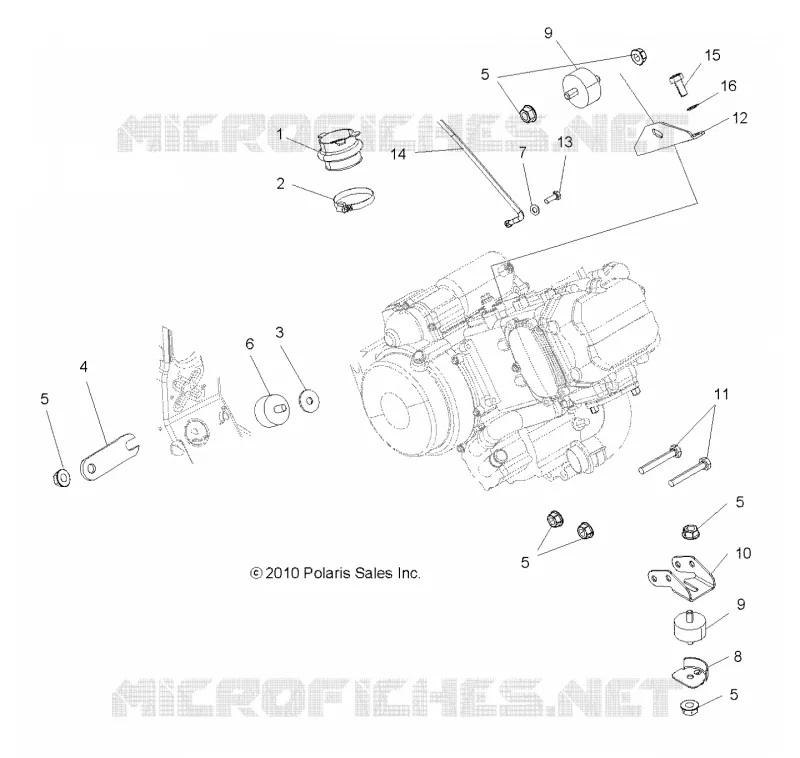

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
