1
Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
FRONT SUSPENSION AND SKI
5
Parts Diagram
Parts Catalog
RACK TUNNEL EXTENSION
by
STEERING
FRONT SUSPENSION AND SKI
1
2
2
3
3
4
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
15
15
16
17
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
50
1
2
2
3
3
4
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
15
15
16
17
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
50
1
BRACE BULKHEAD
5240349067
Not Available
2
RIVET
7661637
$2,09 Unit Price incl. VAT
3
STRAP SPACER BOTTOM
5211345
9999999
Not Available
4
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
5
BOLT
7512582
9999999
Not Available
6
BOLT
7512678
$36,74 Unit Price incl. VAT
7
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
8
SCREW
7515415
9999999
Not Available
9
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
10
COMPRESSION SPRING
7041261067
Not Available
11
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
12
IFS SHOCK
7041535
$325,49 Unit Price incl. VAT
13
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
14
WASHER
7555832
$4,19 Unit Price incl. VAT
15
NUT LOCK
7542403
9999999
Not Available
16
STEERING ARM
5220326067
Not Available
17
STOP LH STRG BLK.
5241569067
Not Available
17
STOP RH STRG BLK.
5241570067
Not Available
18
RIVET-3/16-.214-.420 (50)
7661130
$2,09 Unit Price incl. VAT
19
RUBBER PIVOT
5410872
9999999
Not Available
20
BOLT
7512557
9999999
Not Available
21
WASHER
7555721
$2,09 Unit Price incl. VAT
22
BUSHING TUBE
5010310
9999999
Not Available
23
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
24
ARM TRLG LH
1822485
9999999
Not Available
24
ARM TRLG RH
1822486
9999999
Not Available
25
BUSHING
7556509
$3,14 Unit Price incl. VAT
26
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
27
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
28
STOP; RUBBER
5411083
9999999
Not Available
29
SCREW
7515462
9999999
Not Available
30
60 DEG4 CARBIDE(STEEL SKI)
2871288
$110,24 Unit Price incl. VAT
31
SKIN;SKI; WIDE; BLK
5432153070
Not Available
32
SHIM SKI SKIN
5433795
9999999
Not Available
33
SKI WELD
1820430067
Not Available
34
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
35
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
36
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
37
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
38
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
39
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
40
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
41
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
42
RADIUS ROD; LOWER; MEDIUM GLOSS BLACK
1822444067
Not Available
43
RADIUS ROD PIVOT BUSHING; 3/8
5411099
9999999
Not Available
44
ROD RAD UP. FIXED
1822420
9999999
Not Available
45
PIVOT BUSHING
5411095
$27,29 Unit Price incl. VAT
46
NUT FLEXLOCK
7542503
9999999
Not Available
47
BRKT RAD.ROD BTM.
5242578
9999999
Not Available
48
NUT FLEXOC;
7542703
9999999
Not Available
49
ROD END-1/2;PL;.745 WIDE;FM
7061071
$99,74 Unit Price incl. VAT
50
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT

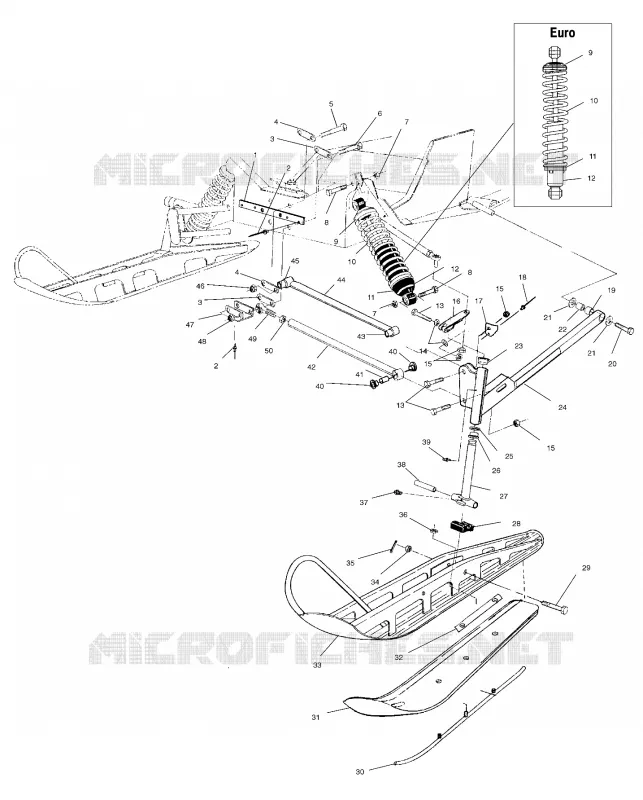

Find the detailed FRONT SUSPENSION AND SKI POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
