DRIVE TRAIN for POLARIS 700 HO TOURING from 2006

DRIVE TRAIN

1

BOLT

7515369

$9,44 Unit Price incl. VAT

2

WASHER FLAT

7555701

$7,34 Unit Price incl. VAT

3

WASHER FLAT(10)

7555734

$1,56 Unit Price incl. VAT

4

WASHER

7555957

$9,44 Unit Price incl. VAT

5

SPACER-INPUT SHAFT.875 OD

5134371

9999999

Not Available

6

DRIVE BELT

3211080

$188,46 Unit Price incl. VAT

6

DRIVE BELT

3211115

$269,31 Unit Price incl. VAT

7

WASHER

7555917

$4,19 Unit Price incl. VAT

7

WASHER

7555864

$4,19 Unit Price incl. VAT

7

BUSHING

7556509

$3,14 Unit Price incl. VAT

8

OFFSET FLANGETTE WITH HOLE

5243529

9999999

Not Available

9

BEARING-1XM52XM15 SPH

3514352

3514617

$54,59 Unit Price incl. VAT

10

SUPPORT-ENGINE LH REAR MACH

5134870

9999999

Not Available

11

JACKSHAFT ASM;15/21 SPL W/BRG

1332336

9999999

Not Available

12

RIVET-3/16-.214-.420 (50)

7661130

$2,09 Unit Price incl. VAT

13

RING RETAINING

7710422

$7,34 Unit Price incl. VAT

14

SEAL SLEEVE; 45 DEGREE CHAMFER

5135231

9999999

Not Available

15

O-RING

5410613

$3,66 Unit Price incl. VAT

16

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

17

BOLT-CARR 3/8-16X1.00 GR5-Y

7518494

$6,29 Unit Price incl. VAT

18

BOLT-CARRIAGE 3/8-16X1.75-Y

7518268

9999999

Not Available

19

BEARING-25MM SPH OD LUBE

3514448

3514617

$54,59 Unit Price incl. VAT

20

WHEEL-PICKUP SPEEDO 9 TOOTH

5240013

5136619

$62,99 Unit Price incl. VAT

21

BOLT-CARR 5/16-18X5/8 GR5-Y

7518049

$7,34 Unit Price incl. VAT

22

PALNUT

7547030

$9,44 Unit Price incl. VAT

23

SCR-5/16-18-1 UNC 2A TRX-P30-Y

7518444

$7,34 Unit Price incl. VAT

24

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

25

DRIVE PICKUP HOUSING

5246960

$47,24 Unit Price incl. VAT

26

SPEED PICKUP SENSOR

2410376

9999999

Not Available

27

BOLT

7512232

$2,09 Unit Price incl. VAT

28

JACKSHAFT GASKET; BLACK

5811095

9999999

Not Available

29

SCREW

7516733

$11,54 Unit Price incl. VAT

30

FLANGETTE ASSEMBLY WITH SCREWS

1014299

$68,24 Unit Price incl. VAT

31

ASM-DRVSHAFT TUBULAR 9T REINF

1590411

9999999

Not Available

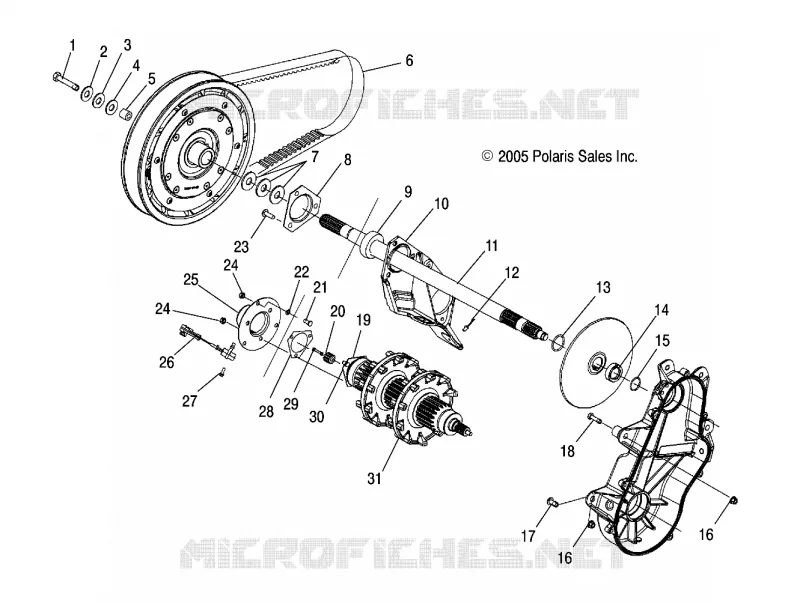

Find the detailed DRIVE TRAIN POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
