ENGINE MOUNTING RH AND FRONT for POLARIS 700 HO TOURING from 2006

ENGINE MOUNTING RH AND FRONT

1

SCREW

7512225

9999999

Not Available

2

ASM-SUPPORT BLKHD UPPER RH

1015100

9999999

Not Available

3

BOLT

7512232

$2,09 Unit Price incl. VAT

4

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

5

SUPPORT-ENGINE RH REAR MACH

5134871

9999999

Not Available

6

SCR-3/8-16X1.75 HXCP-P30-GR5-Y

7518422

9999999

Not Available

7

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

8

MOUNT-ENGINE REAR 60

3021752

9999999

Not Available

9

BOLT-CARR 3/8-16X2-GR5-Y

7518029

9999999

Not Available

10

BOLT-CARR 5/16-X1 GR5 Y LO

7517579

$11,54 Unit Price incl. VAT

11

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

12

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

13

CLAMP-SPRING 1 5/8 ID

7081049

9999999

Not Available

14

SCREW

7512253

$7,34 Unit Price incl. VAT

15

ENGINE MOUNT FRONT

3021753

9999999

Not Available

16

ENGINE BASE SUPPORT FRONT 3/4

5134931

9999999

Not Available

17

WASHER-.390X1.94.050-Y

7556313

9999999

Not Available

18

SCREW

7517297

9999999

Not Available

19

BOLT(10)

7515391

$9,44 Unit Price incl. VAT

20

BOLT-5/16-18X1-1/2 HXFLNG;P-30

7518425

$7,34 Unit Price incl. VAT

21

KIT-SHT BLK S75-86

2203114

9990000

Not Available

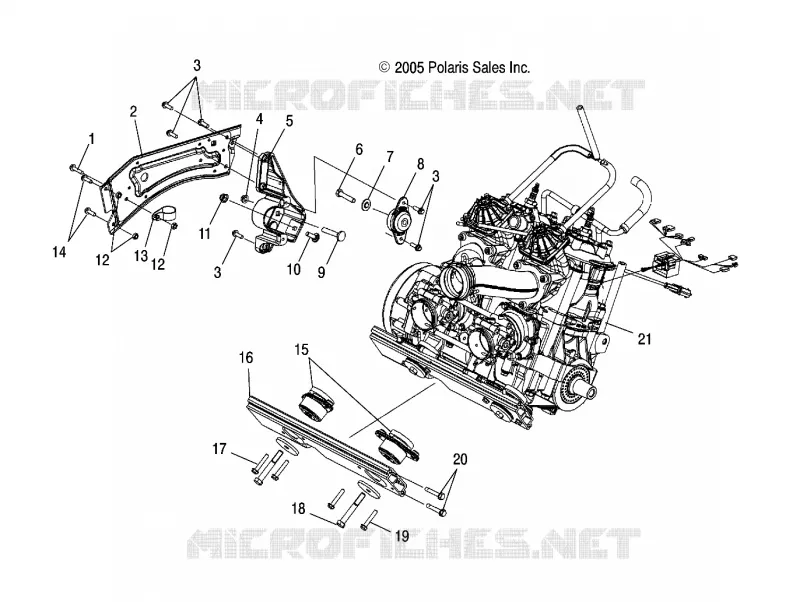

Find the detailed ENGINE MOUNTING RH AND FRONT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
