1
Engine displacement
700
2
Year
2004
3
Trim
700 / 800 XC EDGE F/O
4
Parts Catalog
SHOCK (REAR TRACK)(M-10 ACE)
5
Parts Diagram
Parts Catalog
SHOCK (FRONT TRACK)(M-10)
by
OIL TANK/AIR BOX
SHOCK (REAR TRACK)(M-10 ACE)
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
SHOCK-REAR TRACKRE24M10
7042149
9990000
Not Available
2
ASM-RESERVIOR NON ADJUST 1.459
1500449
9990000
Not Available
3
SEAL-O-RING
1500450
9999999
Not Available
4
PISTON-FLOATING
1500187
9999999
Not Available
5
HOSE
1500560
9999999
Not Available
6
ENDCAP ASMRESERVOIR
1500163
9999999
Not Available
7
O-RING ENDCAP
1500003
9999999
Not Available
8
RESERVOIR
1500451
Not Available
9
RESERVOIR ENDCAP ASM.
1500160
9999999
Not Available
10
O-RING OUTER
1500023
9999999
Not Available
11
AIR VALVE ASSEMBLY
1500014
9999999
Not Available
12
Asm. Bearing (Incl. 13-20)
1500545
Not Available
13
O-RING; .103 X 1.299
1500020
9999999
Not Available
14
O-RING .103X.73ID
1500483
9999999
Not Available
15
RING-SNAP INTERNAL
1500486
9999999
Not Available
16
SCRAPER-FIST DELRIN
1500485
9999999
Not Available
17
O-RING 14MM IDX1 MM
1500484
9999999
Not Available
18
URETHANE U-CUP
1500266
$52,49 Unit Price incl. VAT
19
O-RING INNER
1500021
9999999
Not Available
20
BEARING-.5 IDX.5 TLG
1500488
9999999
Not Available
21
BEARING-RBC 003-10-000
1500444
1501035
$57,74 Unit Price incl. VAT
22
ASM-BODY CAP
1500563
9999999
Not Available
23
O-RING .103W-1.549ID
1500108
$15,74 Unit Price incl. VAT
24
BODY
1500561
9999999
Not Available
25
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
26
PLATE BACKUP
1500015
9999999
Not Available
27
DAMPER; PISTON RING
1500002
9999999
Not Available
28
PLATE TOP OUT
1500017
9999999
Not Available
29
SHAFT
1500562
9999999
Not Available
30
EYELET
1500564
9999999
Not Available
31
BUMPER JOUNCE
5410855
9999999
Not Available
32
BUSHING .35ILG .595TLG
1500309
9999999
Not Available
33
SLEEVE .56 X .81 X 1.2
1500310
$40,94 Unit Price incl. VAT

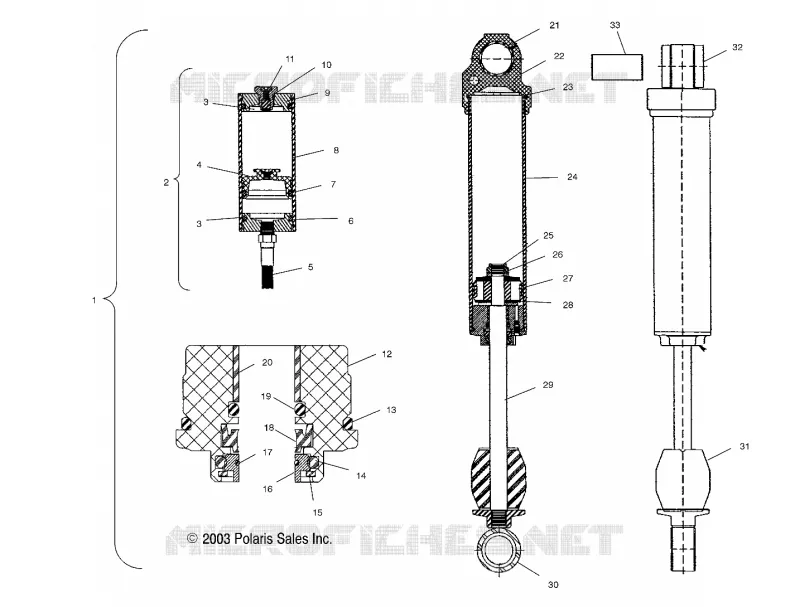

Find the detailed SHOCK (REAR TRACK)(M-10 ACE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
