Parts Catalog
OIL TANK/AIR BOX
5
Parts Diagram
Parts Catalog
SHOCK (REAR TRACK)(M-10 ACE)
by
DRIVE TRAIN
OIL TANK/AIR BOX
1
2
3
4
5
6
18
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
18
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
5
6
18
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
1
TOOL BOX COVER
5434089
9999999
Not Available
2
FOAM
5812209
9999999
Not Available
3
SCREW
7512297
$10,49 Unit Price incl. VAT
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
ASM-OIL TANK W/SENDING UNIT
1253539
9990000
Not Available
5
WELD-OIL BOTTLE/TOOL BOX
1261127
9999999
Not Available
6
SCREW
7512095
$9,44 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
FITTING HOSE
7052127
9999999
Not Available
9
CLIP
7670102
$4,19 Unit Price incl. VAT
10
CHIMNEY FOAM
5811983
$36,74 Unit Price incl. VAT
11
DECAL CAUTION
7075351
9999999
Not Available
12
STRAP
5433150
$47,24 Unit Price incl. VAT
13
ASM-AIR SILENCER
1253501
9999999
Not Available
14
DECAL-BELT REMOVALE/R
7171037
9999999
Not Available
15
DECAL; GREASING
7073426
9999999
Not Available
16
NUT WELL
7547103
$15,74 Unit Price incl. VAT
17
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
CLIP IGNITION CABLE
7080471
9999999
Not Available
20
WASHER
7552604
$3,14 Unit Price incl. VAT
21
SCREW
7517610
$3,14 Unit Price incl. VAT
22
SCREW
7511862
9999999
Not Available
23
CARBURETOR BOOT
5412157
9999999
Not Available
24
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
25
FUEL LINE; 1/4 ID
84500031525
Not Available
26
OIL SENDER WITH FRONT TERMINALS
4010660
$120,74 Unit Price incl. VAT
27
OIL SENDER GROMMET
7052305
$8,39 Unit Price incl. VAT
28
DECAL-OILVES
7079003
9999999
Not Available
29
VENTED OIL CAP CUSTOM COLOR
1240094
1244736
$68,24 Unit Price incl. VAT

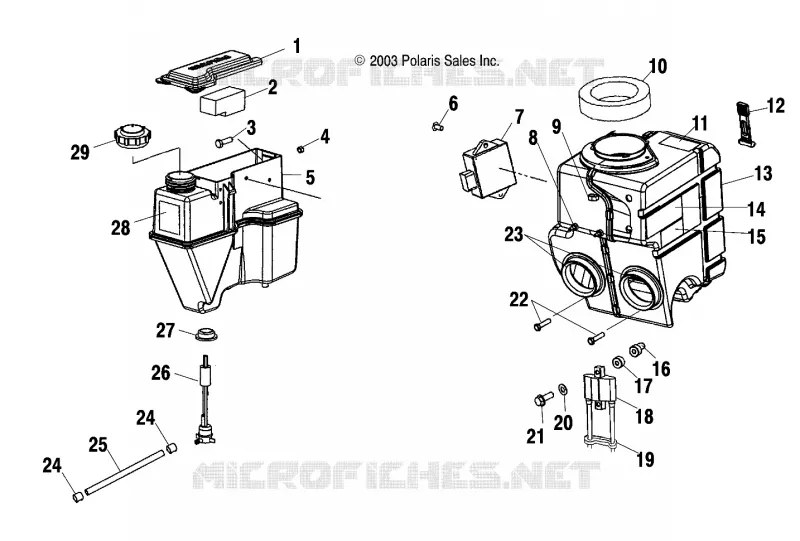

Find the detailed OIL TANK/AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
