1
Engine displacement
autre
2
Year
1994
3
Trim
EURO XLT SP - E940667
4
Parts Catalog
DRIVE TRAIN ASSEMBLY XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420018)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420017)
by
SUSPENSION ASSEMBLY XLT E940767 XLT SKS E940567 (49274227420019)
DRIVE TRAIN ASSEMBLY XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420018)
1
BOLT
7515301
9999999
Not Available
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
9999999
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SNOWMOBILE DRIVE BELT
3211042
$141,21 Unit Price incl. VAT
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE
5240252
9999999
Not Available
10
BEARING DRIVESHAFT
3514518
9999999
Not Available
11
FLANGETTE
5222751
9999999
Not Available
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
KEY-SQUARE
7721204
9999999
Not Available
15
JACKSHAFT ASM BLK.
1332141067
Not Available
16
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
17
DISC ASM BRAKE
1910086
9999999
Not Available
18
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
19
O-RING
5410613
$3,66 Unit Price incl. VAT
20
DIPSTICK
5431419
1332143
$89,24 Unit Price incl. VAT
21
O-RING
5410675
$3,14 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
24
BOLT CARRIAGE
7515428
9999999
Not Available
25
DRIVE SHAFT
6230067
9999999
Not Available
26
SPROCKET 9T
5430571
9999999
Not Available
27
SPROCKET HALF9T
5430993
9999999
Not Available
28
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
29
DRIVESHAFT ASM. Substituted by 1590245
1590229
Not Available
30
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
31
JACKSHAFT BEARING
3514519
9999999
Not Available
32
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
33
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
34
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT

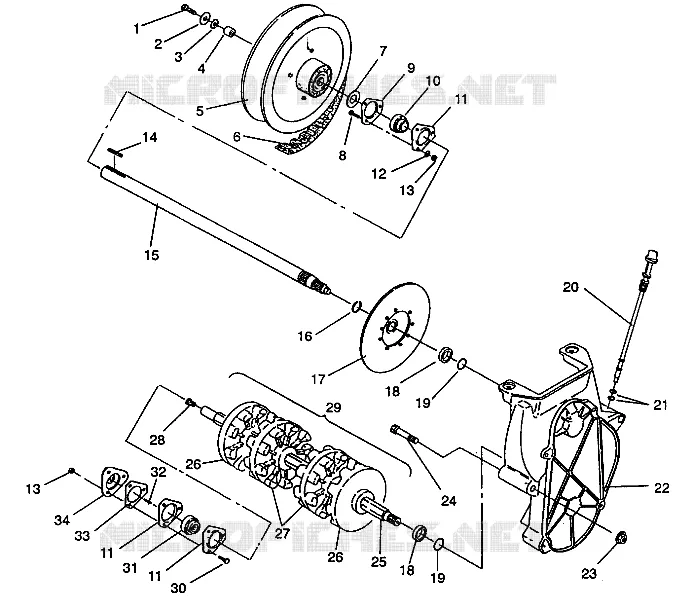

Find the detailed DRIVE TRAIN ASSEMBLY XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420018) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
