Parts Catalog
FOX SHOCK, GAS
5
Parts Diagram
Parts Catalog
FOX SHOCK, GAS
by
HITCH ASSEMBLY XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420031)
FOX SHOCK, GAS
1
BUSHING SHOCK .340
5431542
9999999
Not Available
2
AIR VALVE ASSEMBLY
1500014
9999999
Not Available
3
SCREW
1500019
9999999
Not Available
4
BODY SHOCK
1500034
Not Available
5
BUSHING 1.40
5020657
9999999
Not Available
6
O-RING BODY FOX .139W-1.234ID
1500004
9999999
Not Available
7
PISTON
1500011
9999999
Not Available
8
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
9
O-RING ENDCAP
1500003
9999999
Not Available
10
PLATE BACKUP
1500015
9999999
Not Available
11
PISTON
1500042
Not Available
12
O-RING INNER
1500021
9999999
Not Available
13
WIPER INNER
1500025
1500266
$52,49 Unit Price incl. VAT
14
WIPER CLR OUTER
1500024
5433298
$23,09 Unit Price incl. VAT
15
SHAFT
1500035
9999999
Not Available
16
EYELET G EYE
1500036
Not Available
17
BEARING
1500009
9999999
Not Available
18
O-RING; .103 X 1.299
1500020
9999999
Not Available
19
PLATE TOP OUT
1500017
9999999
Not Available
20
DAMPER; PISTON RING
1500002
9999999
Not Available
21
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
22
O-RING DRUM OUTER
1500022
9999999
Not Available
23
SCREW
1500018
9999999
Not Available
24
O-RING OUTER
1500023
9999999
Not Available
25
CAP BODY
1500012
Not Available
25
SHOCK GAS REAR
7041347
Not Available

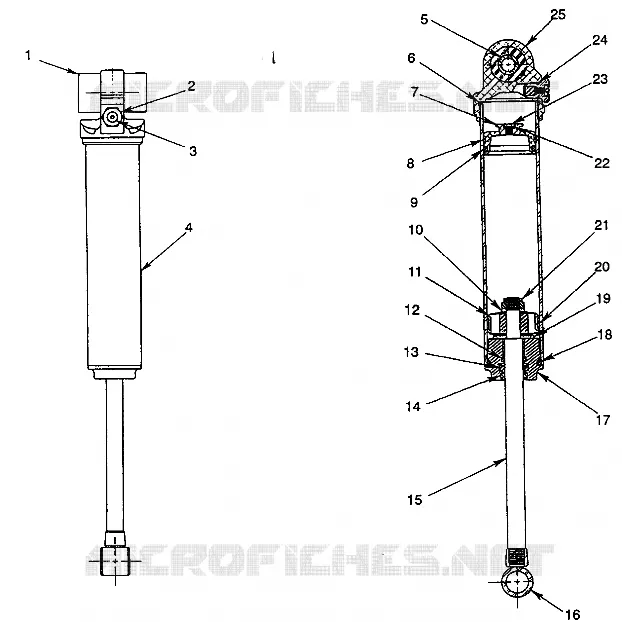

Find the detailed FOX SHOCK, GAS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
